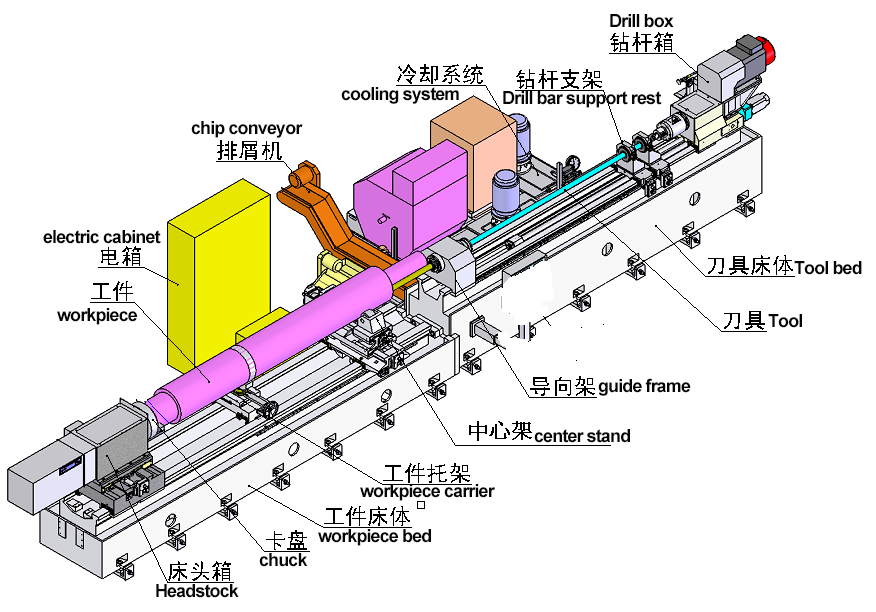

Machine Brief 1.1 Processing Capacity Gundrill: Ø8 - Ø30 mm BTA Drill: Ø30 - Ø60 mm Boring: Ø40 - Ø100 mm Max. Machining Depth: 2500 mm Max. Hole Length-Diameter Ratio: 100:1 Workpiece Range: Ø25 - Ø220 mm, Max. Length 4500 mm 1.2 Drilling Methods Gundrilling (External chip removal)/BTA Drilling (Internal chip removal)/Boring 1.3 Workpiece & Machining Features Lateral (Off-Centre) Movement & Indexing: The workpiece can be moved laterally and indexed, suitable for machining coaxial or indexed holes on shaft-type parts. Coaxial Holes: Can be machined with or without workpiece rotation. Off-Centre Holes: Machined without workpiece rotation. 复合钻.png

Model		ZSK2206F
Main parameter	Drill diameter range	Φ8~Φ30mm
	BTA drilling diameter range	Φ30~Φ60mm
	Boring diameter range	Φ40~Φ100mm
	Max. Drill depth	2500mm
	Max. Workpiece lenth	4500mm
	Workpiece OD range	Φ25～Φ220mm
	Drilling eccentricity (mm)	110mm
Drill box	Main motor power	22KW
Drill box	Max. Rotary speed	3000r/min
Headstock	Maximum speed (r/min)	40
	Main motor power(KW)	3.7
	Transverse stroke(mm)	250
Tool feed	Feeding speed range	5~500mm/min
	Rapid move speed	3m/min
	Feeding motor torque	15Nm
Coolant system	Max. Flow	200L/min
	Max. Pressure	8MPa
	Filter accuracy	20μm
	Oil tank capacity	2000L
Other	Total machine power	50KW

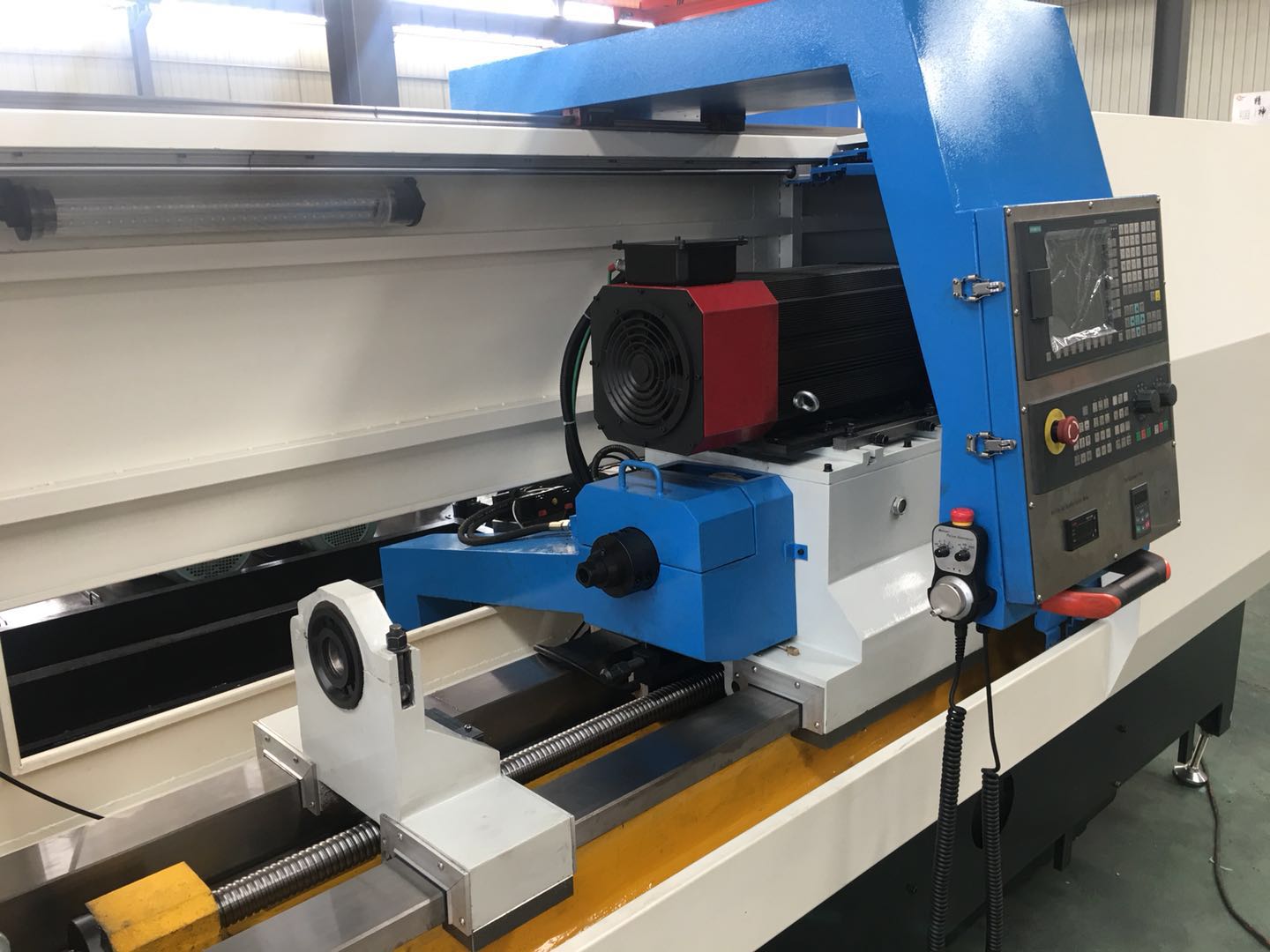

ZSK2206F BTA and Gun drilling Combined Drilling machine
