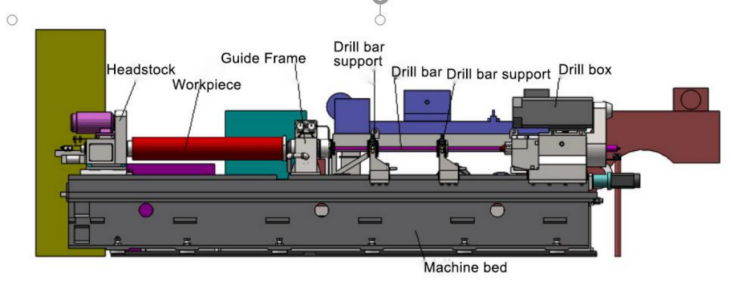

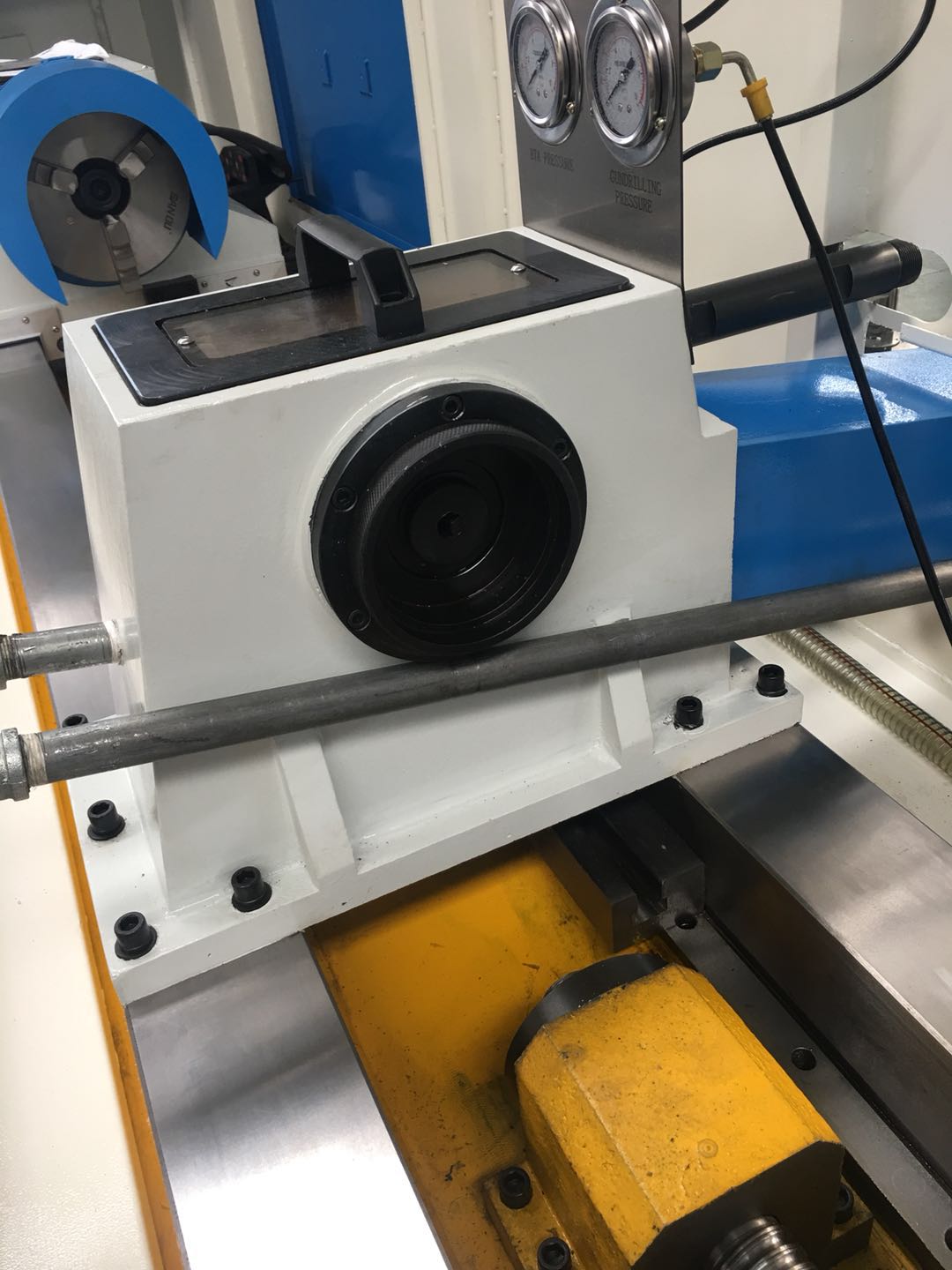

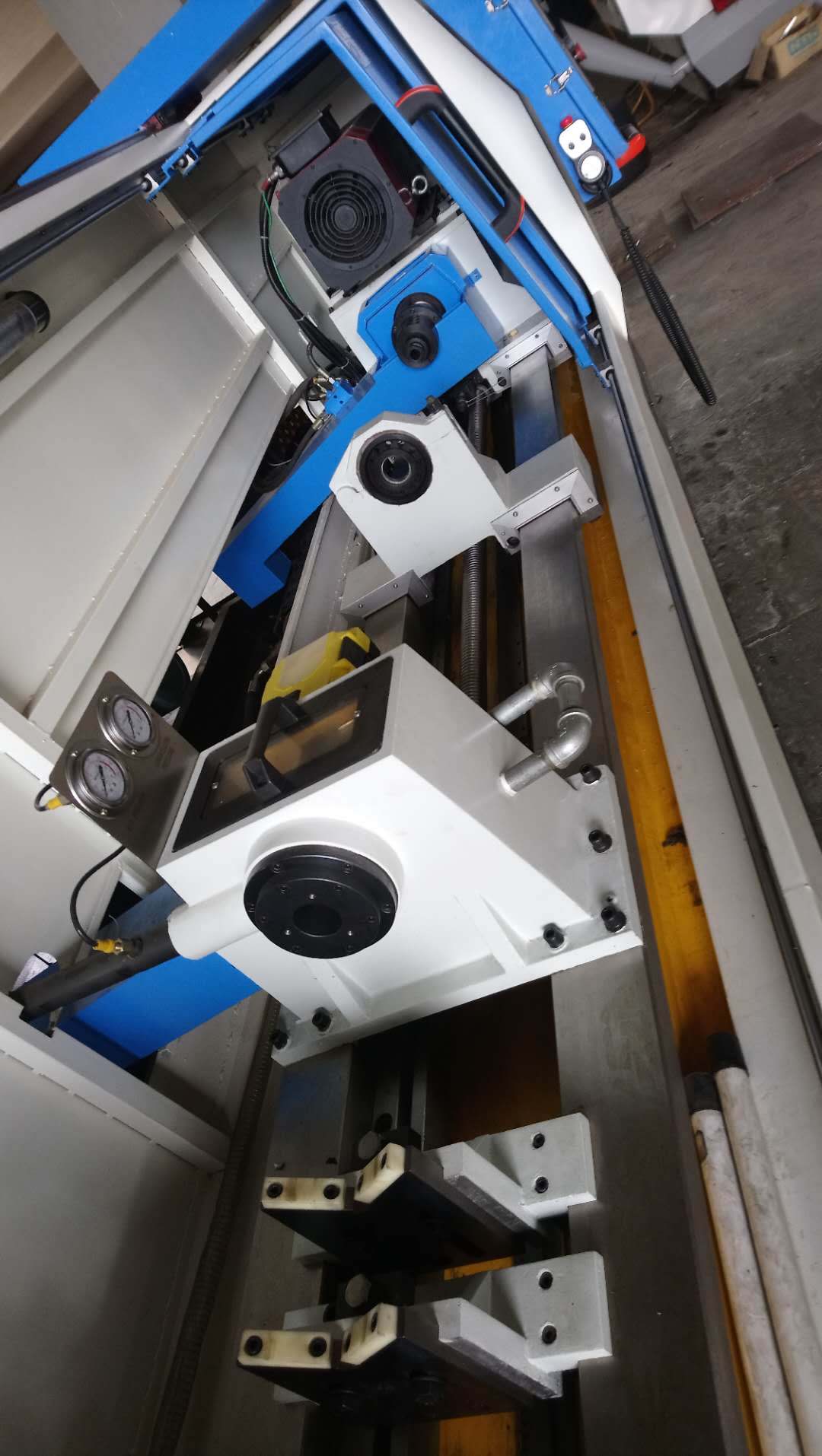

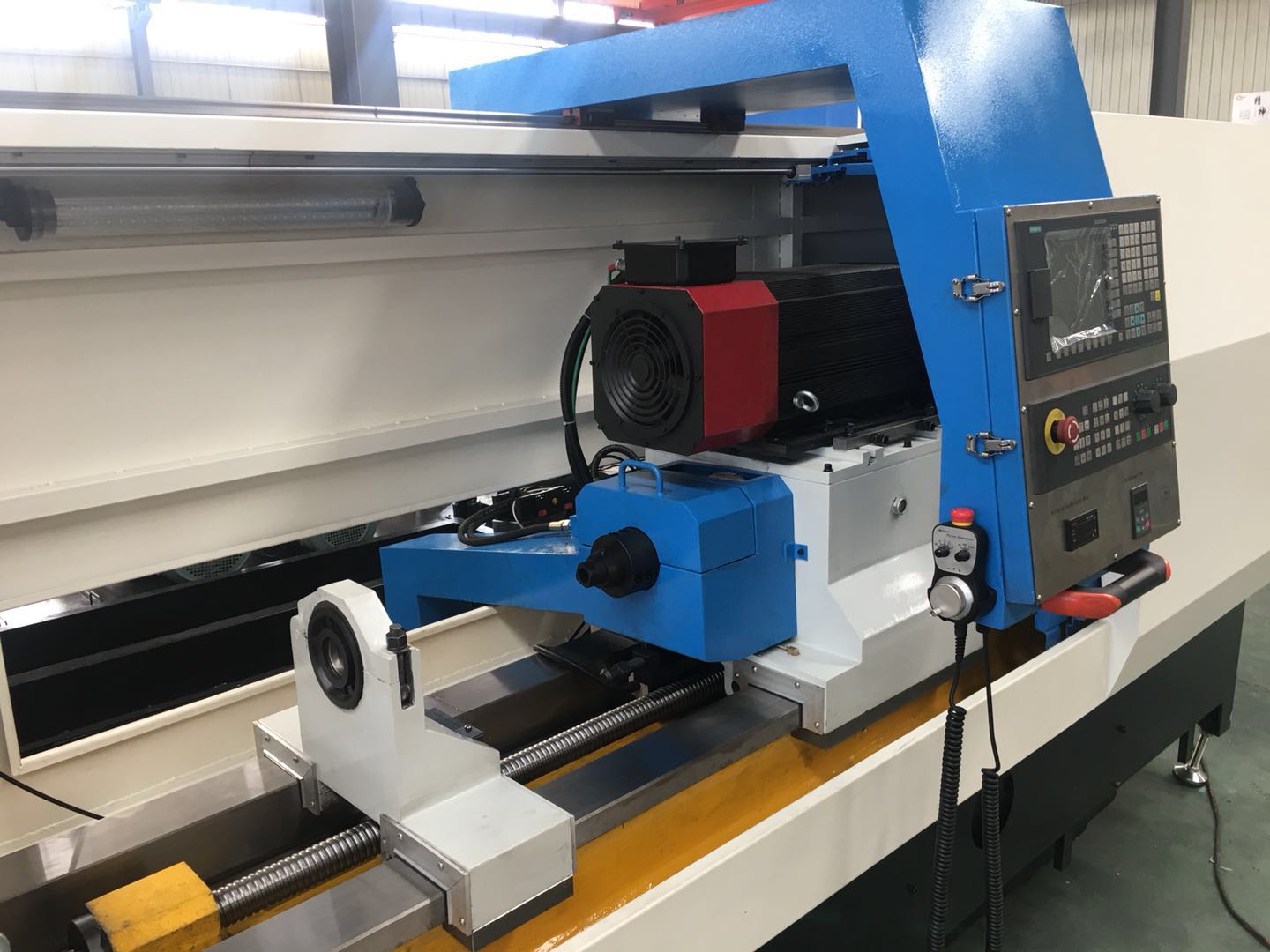

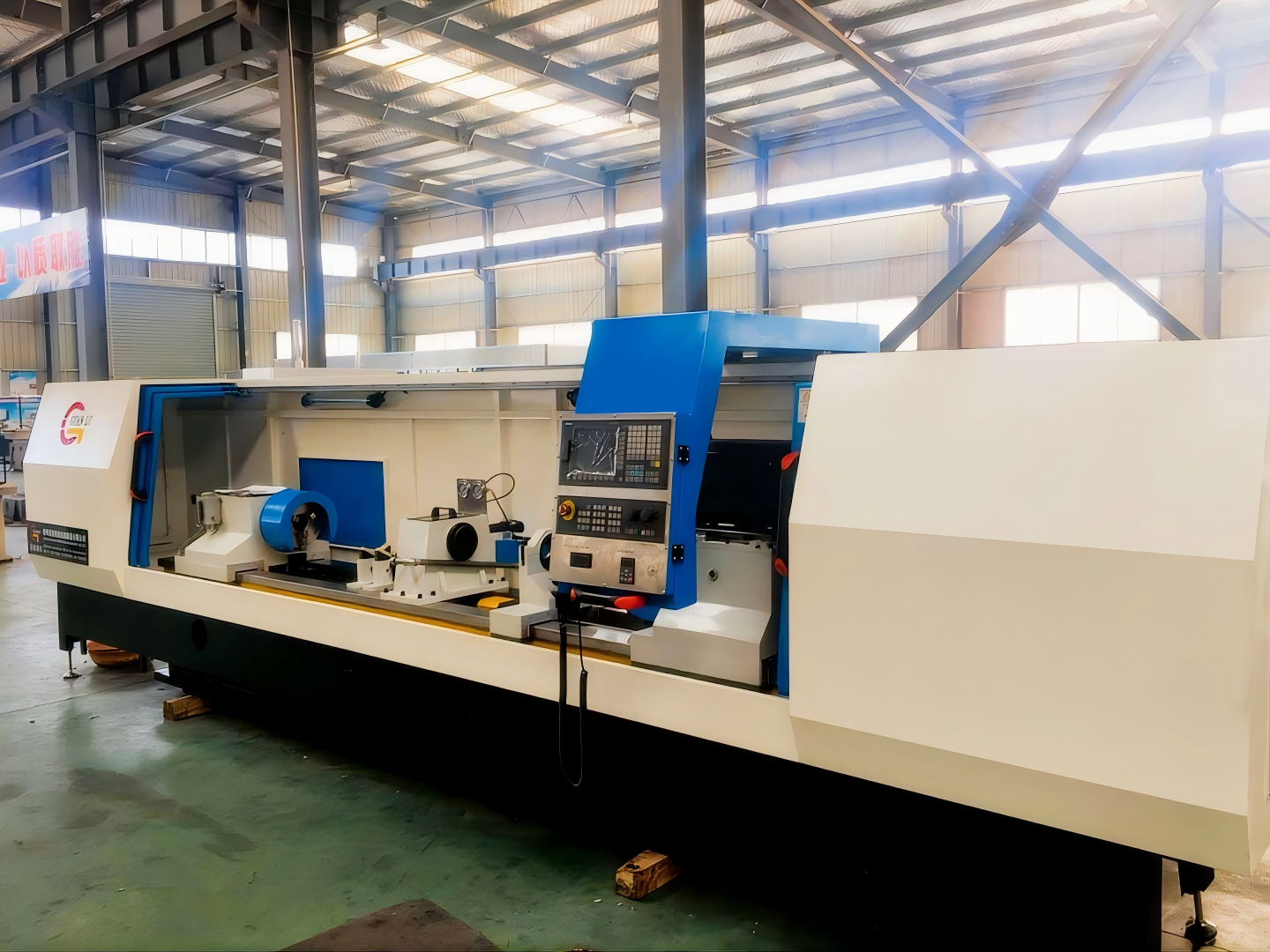

The machine adopts double spindle structure, gun drill and BTA share a set of spindle, which is suitable for processing coaxial holes on shaft parts; When converting gun drill and BTA, it is
necessary to manually change tools, auxiliary tools and switch oil circuit to realize the conversion of the two processing methods.
When machining, the tool and the workpiece rotate relatively,or the workpiece is fixed, the tool rotates and feeds.
Working capacity:
Drilling mode: Gun drilling mode (external chip removal) and BTA mode (internal chip removal)
Gun drill drilling range: φ 6- φ 25mm
BTA drilling range: φ 25- φ 60mm
Max machining depth: 1500mm
Max workpiece OD: Φ 170mm
(For big OD workpiece(More than 170 mm) , you can use single spindle drilling with fixture. Under this mode , the workpiece is fixed)
Specification | Parameters | Note | ||
Working capacity | Drilling diameter range | Gun drilling | Φ6~Φ25mm | |
BTA | Φ25~Φ60mm | |||
Max.workpiece length | 1500mm | |||
Max.drilling depth | 1500mm | |||
Max.Workpiece OD for 2 spindle mode | Φ170mm | |||
Spindle quantity | 2 pcs | |||
Machine performance |
Z axis | Infeed speed range | 5～500mm/min | |
Rapid traverse rate | 3000mm/min | |||
Motor torque | 23Nm | |||
Drill box | Max.rotary speed | 2500r/min | Stepless | |
Motor power | 30KW | Servo main motor | ||
Headstock | Rotary speed | 30r/min | Constant speed | |
Motor power | 3.7KW | Ordinary motor | ||
Cooling system |
Max. pressure | Gun drilling | 8MPa | Adjustable |
BTA | 2.5MPa | Adjustable | ||
Max.flow rate | 300L/min | Adjustable | ||
Filtering accuracy | 20um | |||
Other requirements | Machine total power(roughly) | 55KW | ||
Machine total weight(roughly) | 8T | |||
Machine floor space | 6.1m×2.7m | |||
