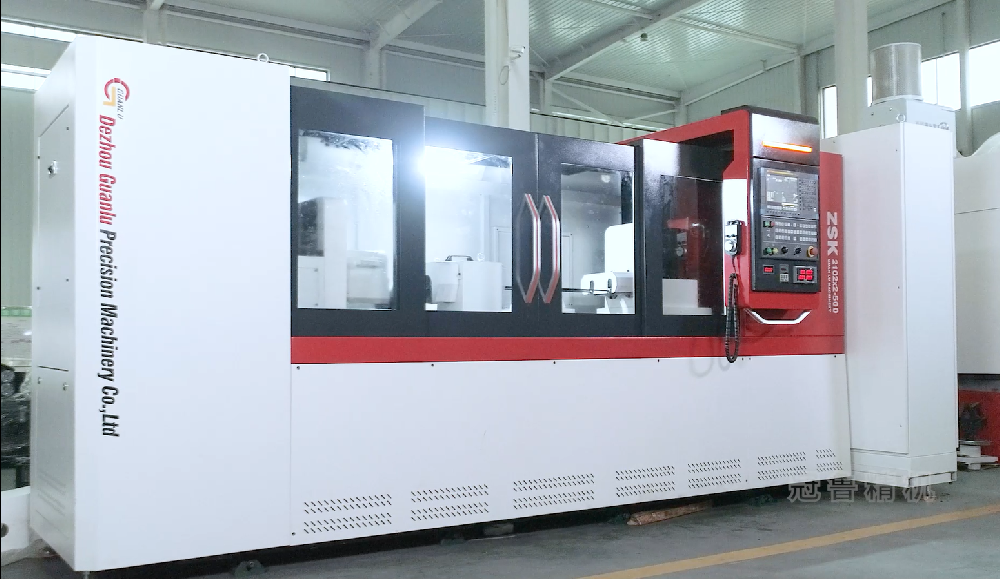

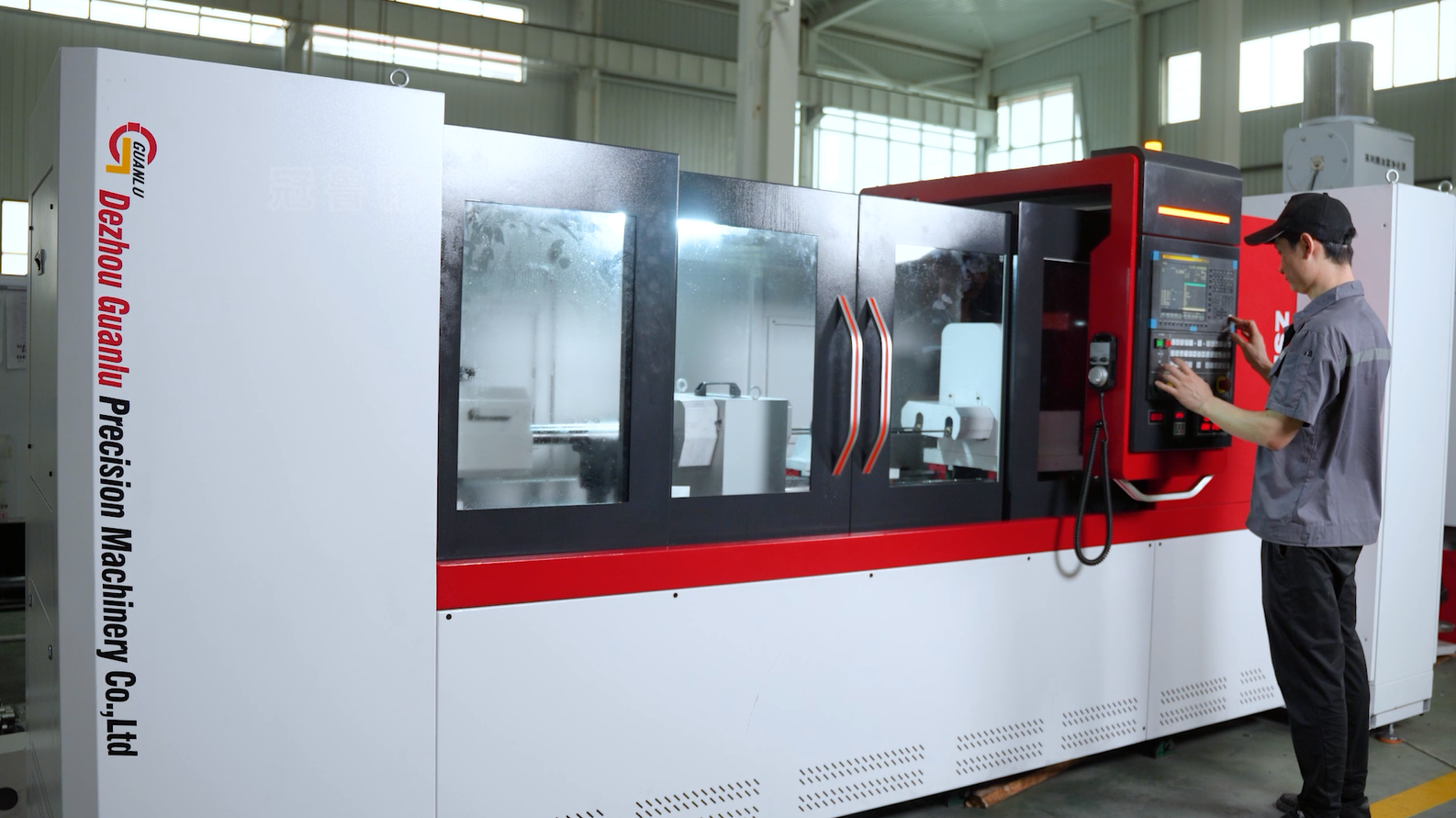

Machine Tool Overview

  Processing scope

Drilling range: Φ3 ~ Φ20mm

Maximum drilling depth: 1500 mm

Maximum borehole aspect ratio 100: 1

Workpiece outer diameter range: Φ15 ~ Φ100mm

4 spindle structure, can have 4 workpieces at the same time, suitable for processing coaxial holes on shaft parts;

1.2 Gun drilling: internal oil supply and external chip removal.

1.3 During machining, the tool and workpiece rotate relatively, and the tool is fed.

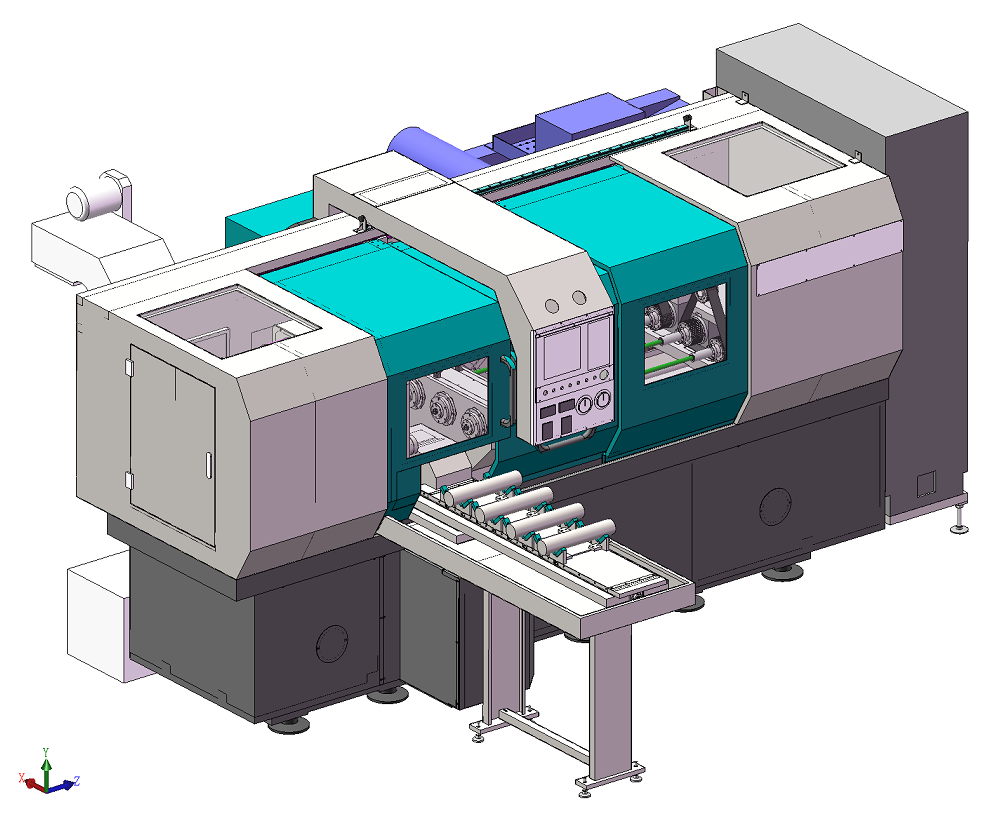

Automatic loading and unloading device

A plurality of workpieces are placed on the feeding carriage and arranged in a row; The feed carriage moves to the processing area; Automatic processing of workpieces; After the processing is completed, the feeding bracket sends the workpiece to the outside of the machine tool; Remove the processed workpiece and replace it with a new workpiece to continue processing. The whole feeding action is controlled by CNC control system.
