Use internal water outlet, interchangeable insert U-drill (also known as violent drill, fast drill), or twist drill (used for holes less than 15 mm in diameter) for shallow hole machining of rotary drums, and use special tools to complete orifice tapering machining.

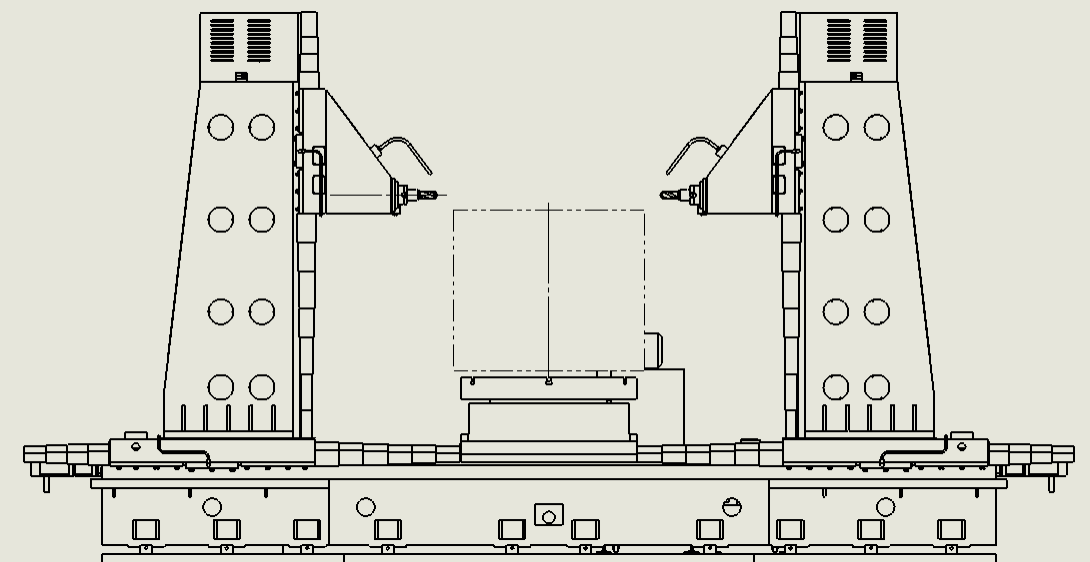

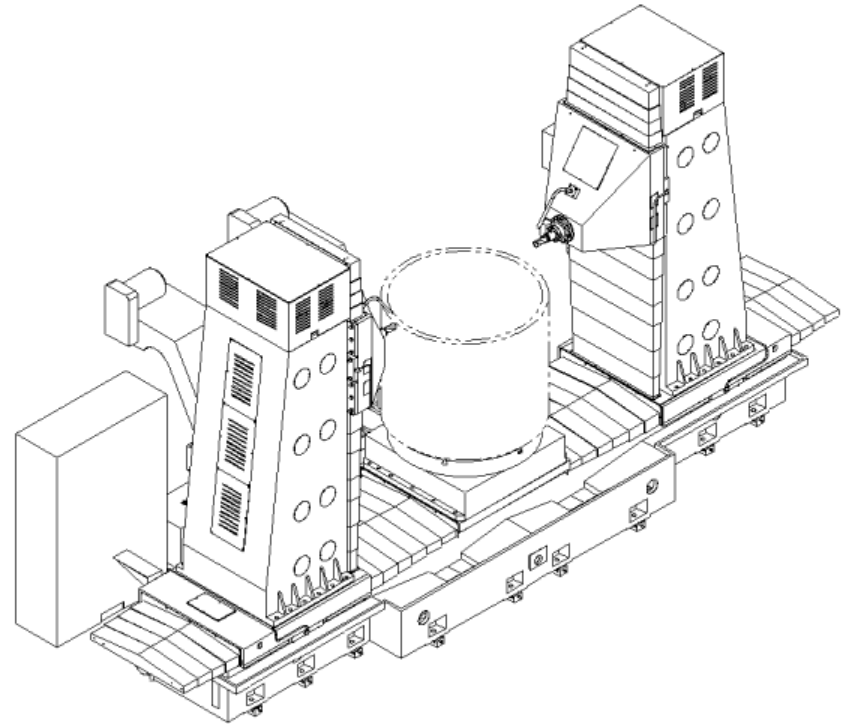

The workpiece is vertically installed on the CNC rotary worktable and can be freely indexed. The two sets of tool systems are symmetrical about the workpiece, corresponding to two sets of independent tool feed systems.
Axes Control: CNC-controlled movement in vertical (Y) and longitudinal (Z) directions.

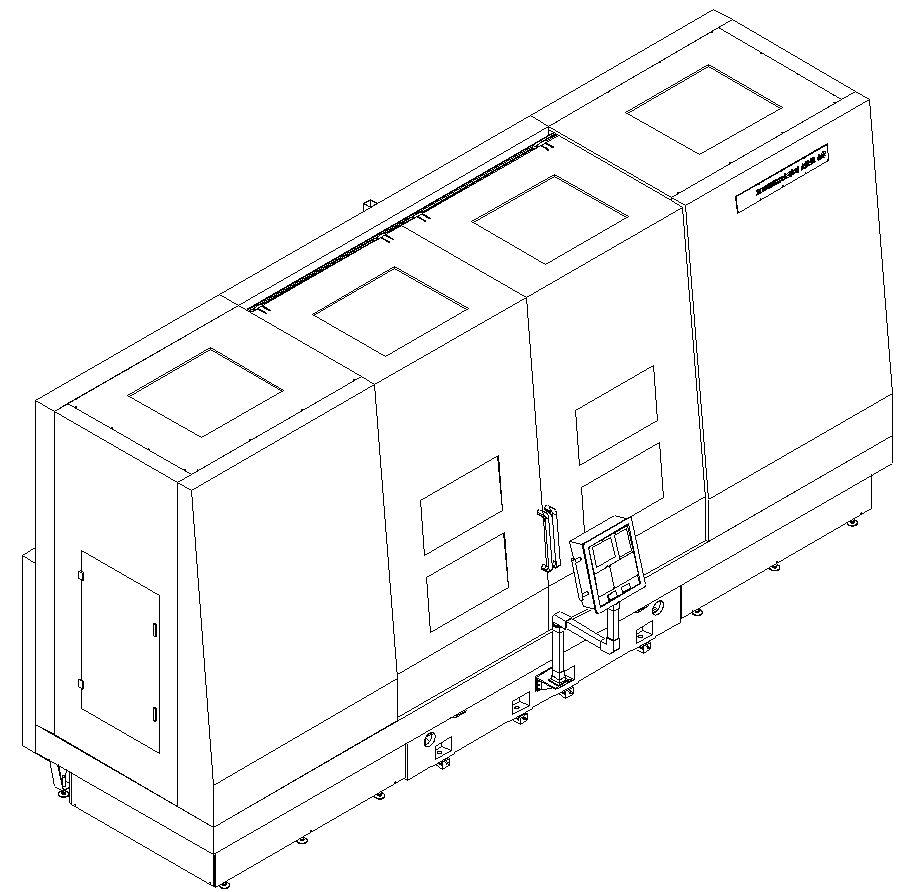

Protection & Guards: Features a fully enclosed main guard with double sliding doors and telescopic stainless steel guards on Y/Z axis rails.
Spindle: Equipped with an internal coolant-through function.
CNC & Drive: CNC system with power-off memory; utilizes high-rigidity, high-torque servo motors.
Chip Removal: Includes an automatic chain conveyor (width ≥500mm) with a leak-proof connection to the bed.
Lubrication: Automatic lubrication system using copper pipes.
Capacity:
Drilling Diameter Range: φ4mm ~ φ20mm
Workpiece Diameter Range: φ180mm ~ φ800mm
CNC System: Standard GSK (Fanuc and Siemens optional).
Technical specifications | Parameter | Remark | ||
Scope of work | Range of bore diameter | Φ4 ~ Φ20mm | ||
Minimum workpiece diameter | Φ180-Φ800mm | |||
Maximum distance between end faces of two spindles | 1540mm | |||
Maximum length of workpiece | 500mm | |||
No. of drill bits | 1 of 2 single sides | |||
Machine tool performance | Z1 Shaft Z2 Shaft | Feed speed range | 5 ~ 500mm/min | Stepless |
Fast moving speed | 3000mm/min | |||
Servo motor | 15Nm/2.4 KW | |||
Journey | 500mm | |||
CNC worktable (B axis) | Minimum indexing unit | 0.001° | ||
Servo motor | 18Nm/2.8 KW | |||
Positioning accuracy/repeated positioning accuracy | 20″/6″ | |||
Table diameter | Φ 1000mm | |||
Workbench load-bearing | 2000㎏ | |||
Y1 Shaft Y1 Shaft | Fast moving speed | 3000mm/min | ||
Journey | 600mm | |||
Minimum distance from tool center to work surface | 50mm | |||
Maximum distance from tool center to work surface | 650mm | |||
Servo motor | 27Nm/4.2 KW | |||
Positioning accuracy/repeated positioning accuracy | 0.03 mm/0. 02 mm | |||
Drill pipe box | Maximum rotation speed | 2500r/min | Stepless | |
Motor power | 7.5 KW × 2 | Spindle motor | ||
Cooling system | Flow | 60L/min × 2 | ||
Pressure | 1MPa | |||
Other | Total power of machine tool | 37KW | ||
Machine tool weight | 15 tons | |||
Overall dimensions of machine tool (length, width and height) | 6m × 3m × 2.8 m | |||
