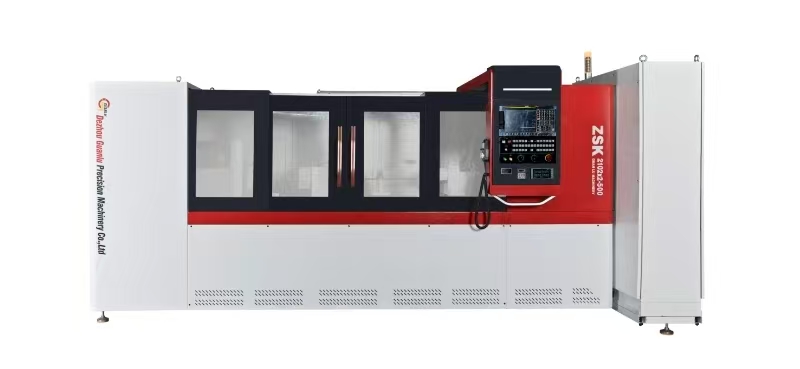

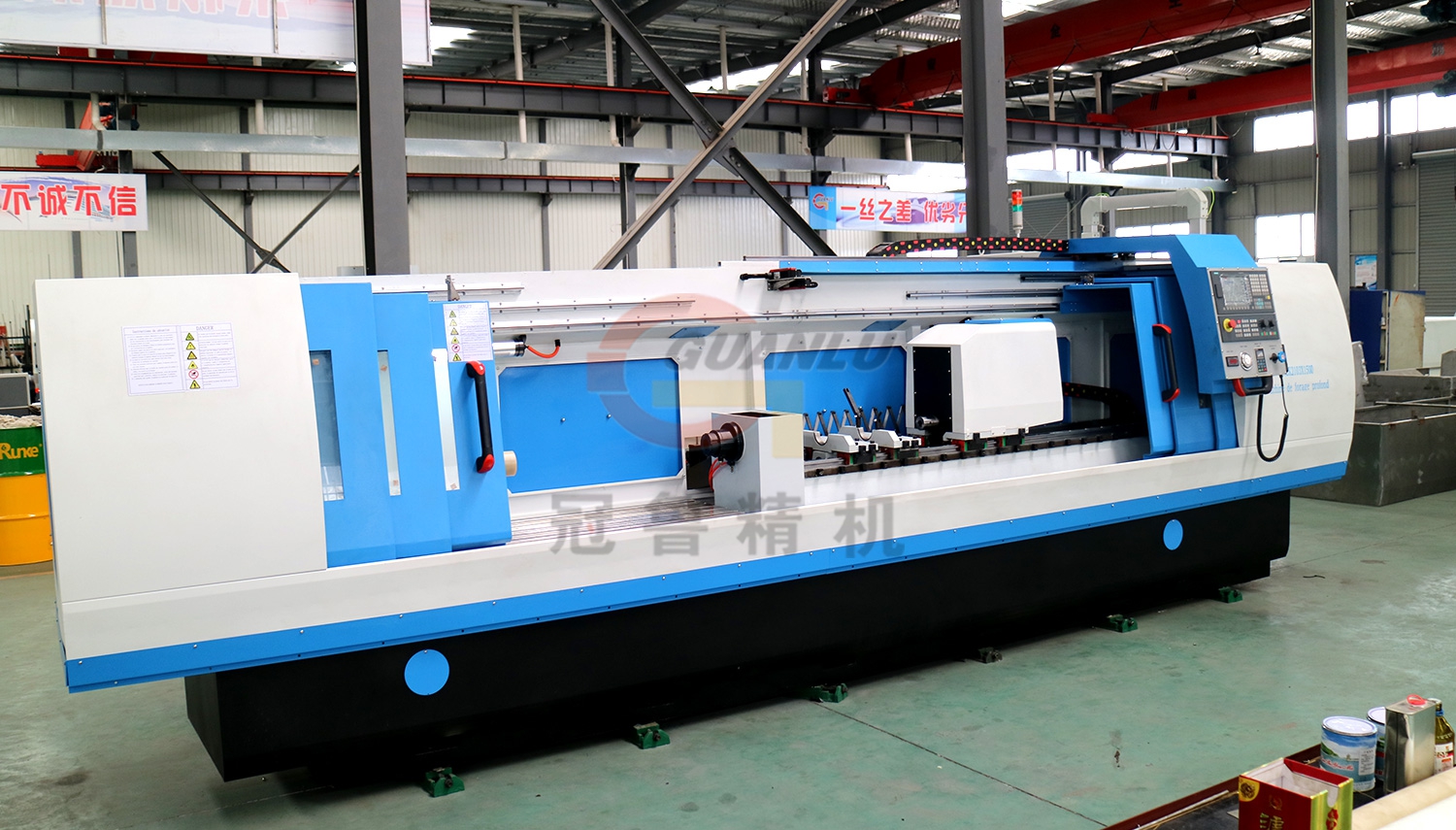

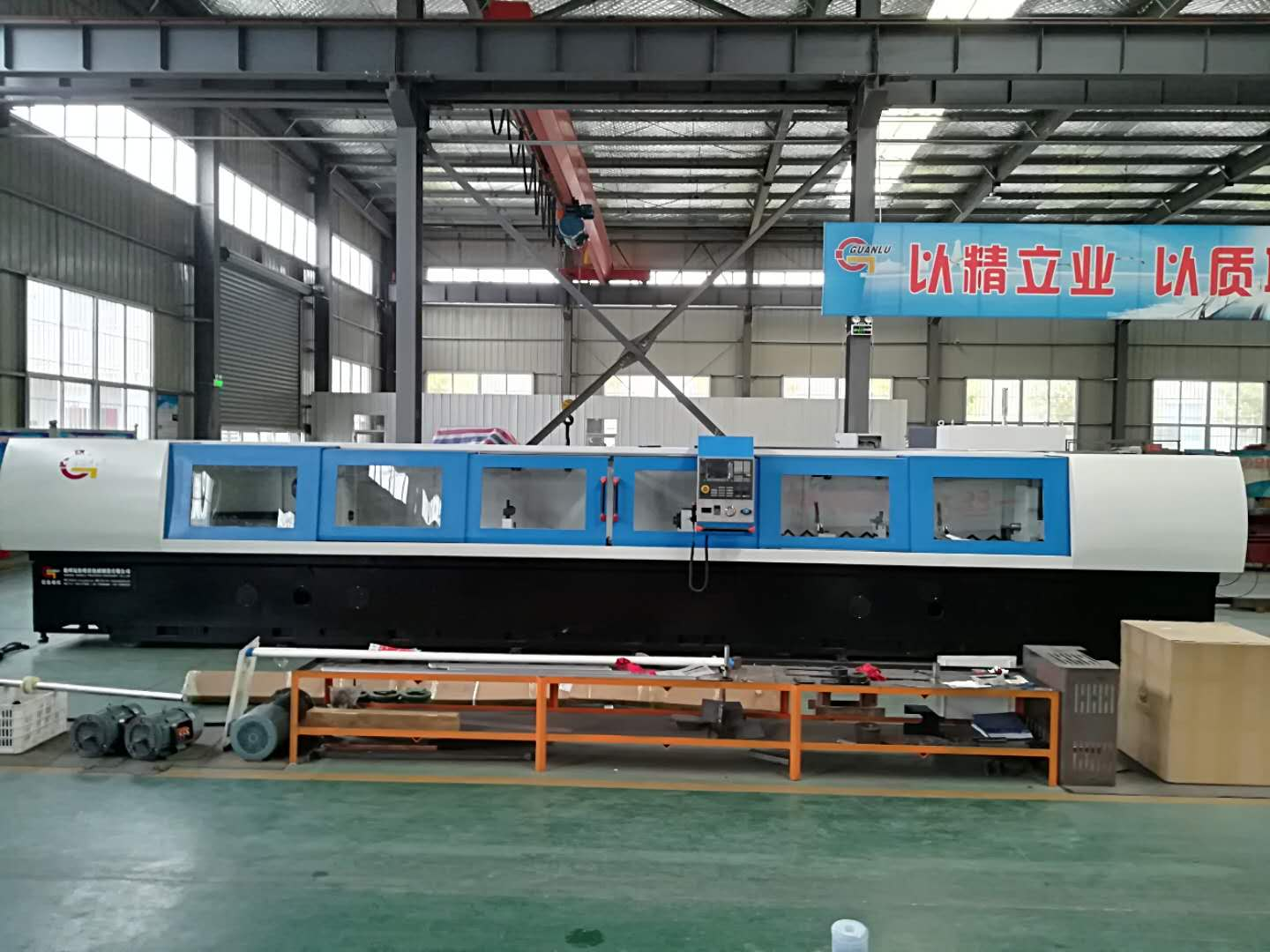

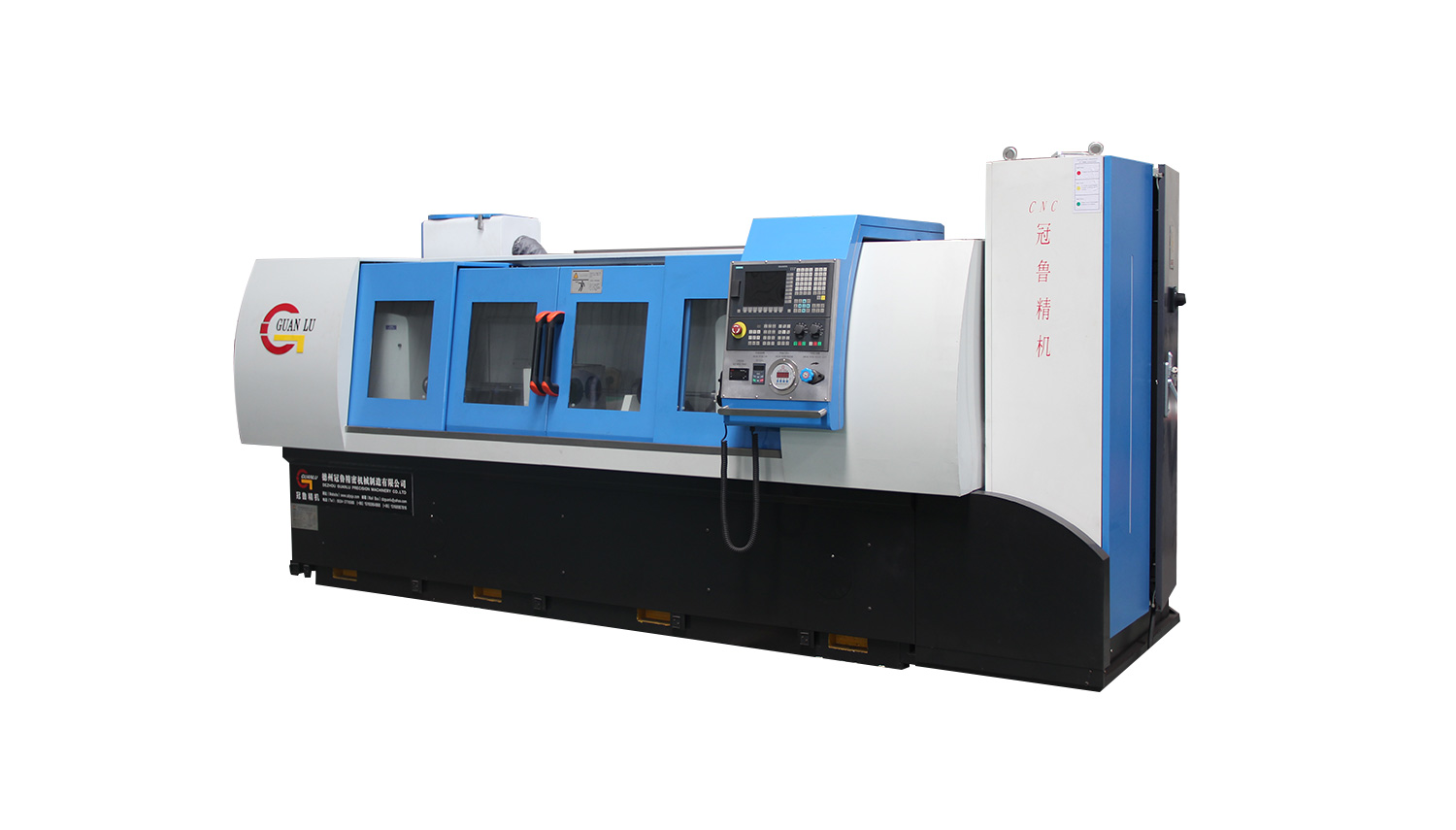

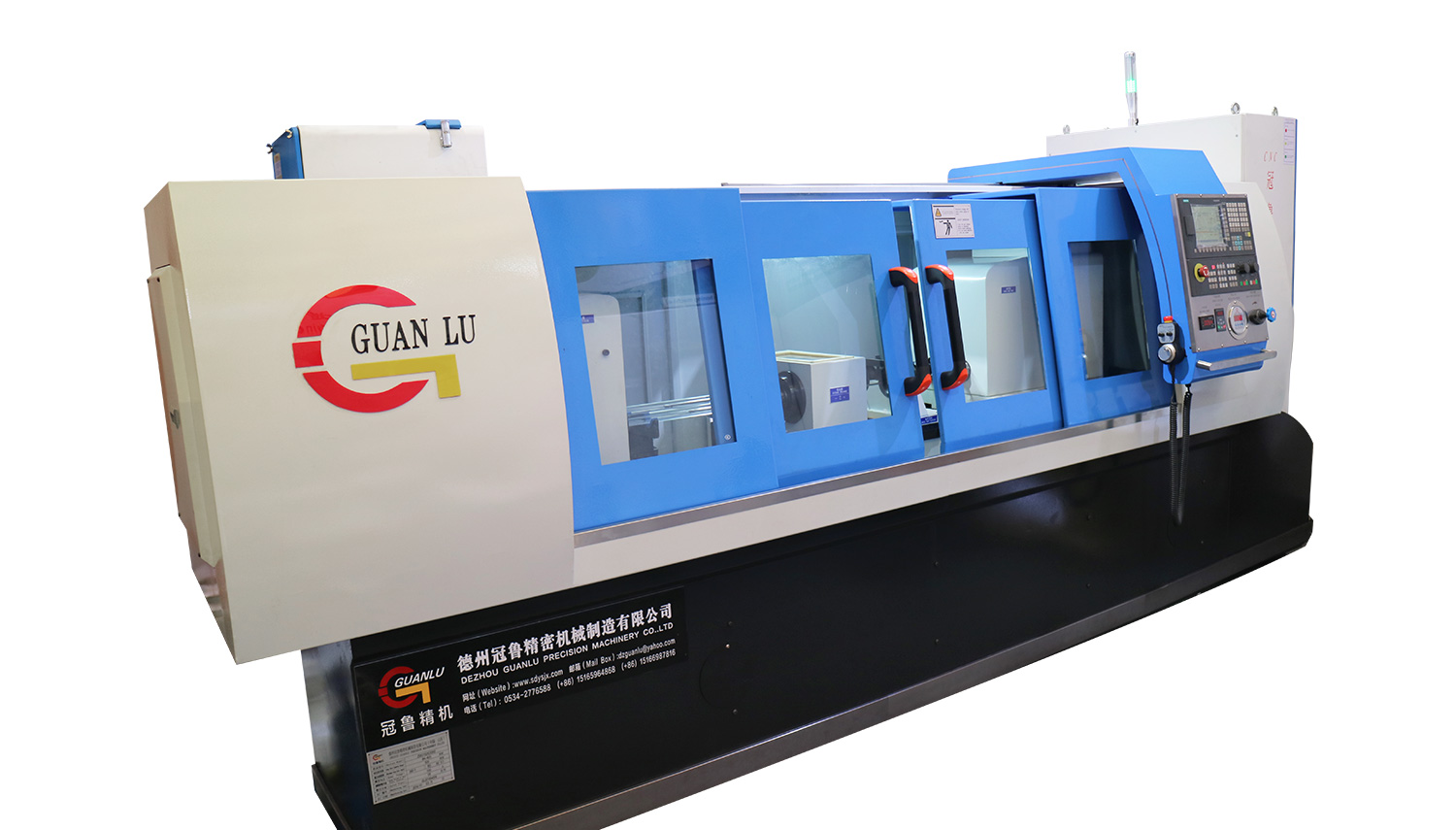

Machine brief:
Gun drilling machine is a machine tool for deep hole drilling process,its sructure has big difference with traditional drilling machines,which has its unique design. The drilling depth could be 100times of the job diameter,if customer has special requirements,by taking specially measure,the drilling depth could realize 200times of its diameter. In additional,the roughness of the inner hole after drilled is in high level,hole size accuracy could be IT7,roughness could be Ra6.3-Ra0.4um,linear accuracy could be 0.1/1000mm. Due to these characters,nowadays,gundrilling machine is not only used for deep hole,it also replaced the reaming,expanding process,and one time drilling,it could solve drilling,expanding and reaming process.
Needs three conditions to get good results for gundrilling process,
Good quality gundrills. 2. Machine specially made according to requirements. 3.Suitable cutting liquid
Gundrilling maximum depth：500/1000/1500/2000/2500 mm/3000mm/4000mm
Hole maximum length and diameter ratio: 100:1(special request needs to special designed
Drilling hole range：
Φ2mm-Φ10mm (ZSK2101 series)//Φ3mm～Φ20mm (ZSK2102 Series)// Φ3mm～Φ30mm (ZSK2103 Series)//Φ6mm～Φ40mm (ZSK2104Series)
Max drilling depth：500/1000/1500/2000/2500 mm/3000mm/4000mm
Function:Gundrilling and reaming
CNC controller system:Fanuc/Siemens/GSK
Deep drilling deviation:if both gun drill and job rotate,the deviation is 0.5mm per 1000mm.
If only gun drill or job rotate,the deviation is 1mm per 1000mm.
Hole finished roughness:Ra6.3um-Ra0.4um.if customer has specific requirements,much better surface roughness will be avaialble by using special tools and drilling solution.

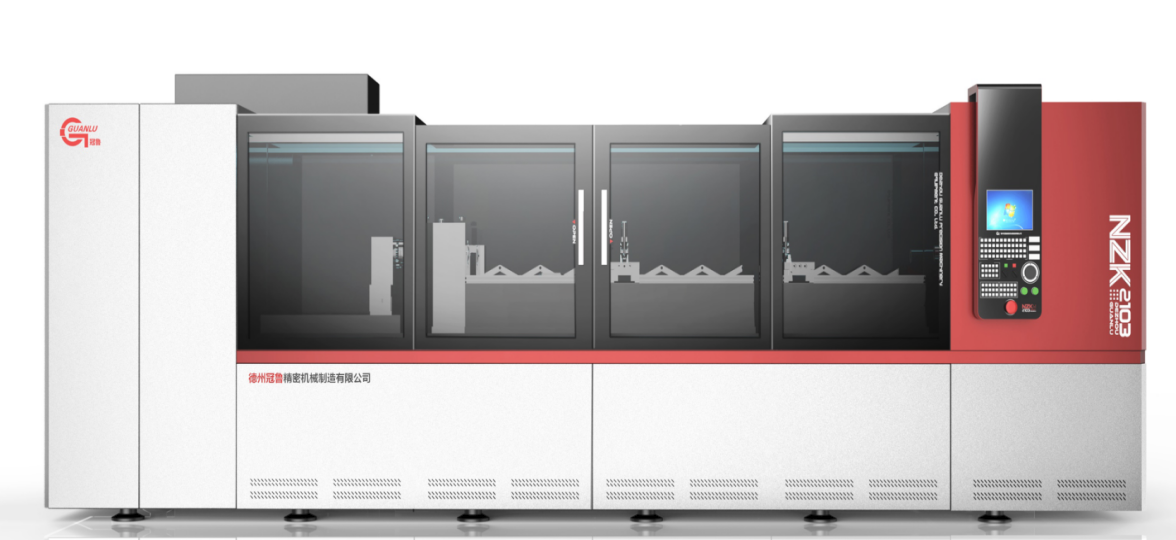

Available models:single spindle,double spindle,four spindle and six spindle gun drilling machines
2D gundrilling machine,suitable to drill plates,which the holes are in one line.
3D gundrilling machine,suitable to drill molds and irregular parts,which the several holes are in one job.
3D combined gundrilling and BTA deep hole drilling machine,which has a wider drilling range,one machine could use gundrilling and BTA drilling sytem both.
Gundrilling application:
automobile industry(engine valve,valve guide,cam shaft,steering rack,fuel injection),hydraulic cylinder industry,moulds industry(glass bottle molds and pallet die,mill die),medical parts industry,textile industry,mineral coal industry and so on.
Medical implants,we have made several sets gundrilling machines for this type parts,such as bone nails,medullary nails,bone screws or stents,most of these parts materials are SS316 or Titanium. Parts are with quite thin walls and always needs good roughness and smallest off center deviation.
Die molds industry,Our 3D deep hole drilling machine/gundrilling machine is used for this industry field. Our innovation combined gundrilling and BTA drilling 3D deep hole drilling machine could work for holes from 6mm to 100mm. and the 3D drilling machine could drill,boring,milling and tapping. it could has rotary working table. For molds industry,it is a good choice to reduce cost and enhance efficiency.
Gun barrels in military,we have good experience to make gundrilling machine to drill blank gun barrels. If the materils is good enough,no need deep hole honing machine,by using gundrilling and reaming process to get perfect gun barrels. We also make rifle machines and vertical honing machines for this applications.
Automotive industry deep hole applications: For this industry,always need high volume production and utmost precision,so we always make four spindles or six spindles gundrilling machine with auto loading and unloading sytem to adopt its usage.
Drilling material:all type of metals and some non-metals,like quartz glass and Nylon.
Drilling jobs:all shapes of jobs,round bar, shaft and blocks(use different fixture)
Drilling different holes:through hole,blind hole,concentric hole,eccentric hole,step hole.
Automation:automatic loading and unloading feeding system is optional.
Siemens/Fanuc/GSK CNC controller
Standard accessories:①Chip conveyor and cart②Air conditioner for electrical box③Coolant pump④Steady rest for tools⑤Working light⑥Tool box⑦English operation manual

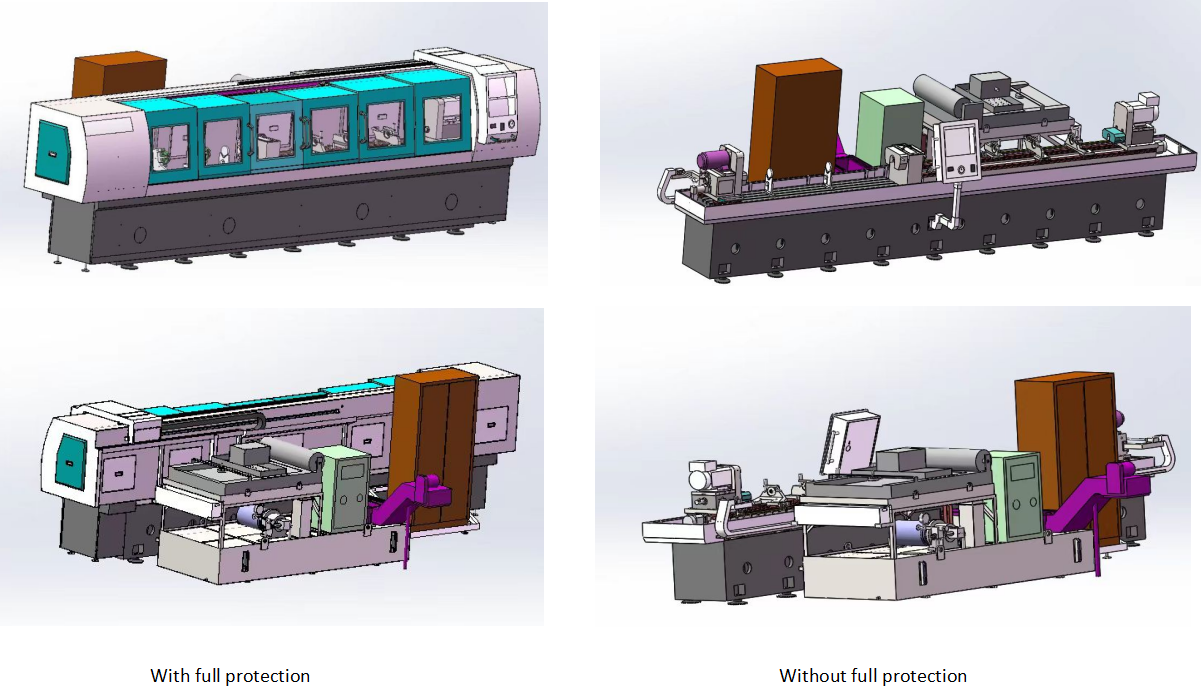

Optional accessories:①Drum type paper filter②Guide bush③Steady rest guide bush④Gundrill resharping grinding machine⑤Full cover safety guard⑥Oil extractor⑦Transformer⑧Coolant chiller
Guanlu brand deep hole gun drilling machines mainly structure:
Headstock: It drives the workpiece to rotate , the spindle can do axial movement under than control of hydraulic system , to tighten and loosen the workpiece, it is good for protecting the main motor .
Workpiece clamping:The cone disc is mounted in front end of spindle for headstock and guide frame, the hydraulic system control the headstock spindle to do axial movement, use the cone disc and chamfer on both end of workpiece to clamp and position the workpiece automatically ;

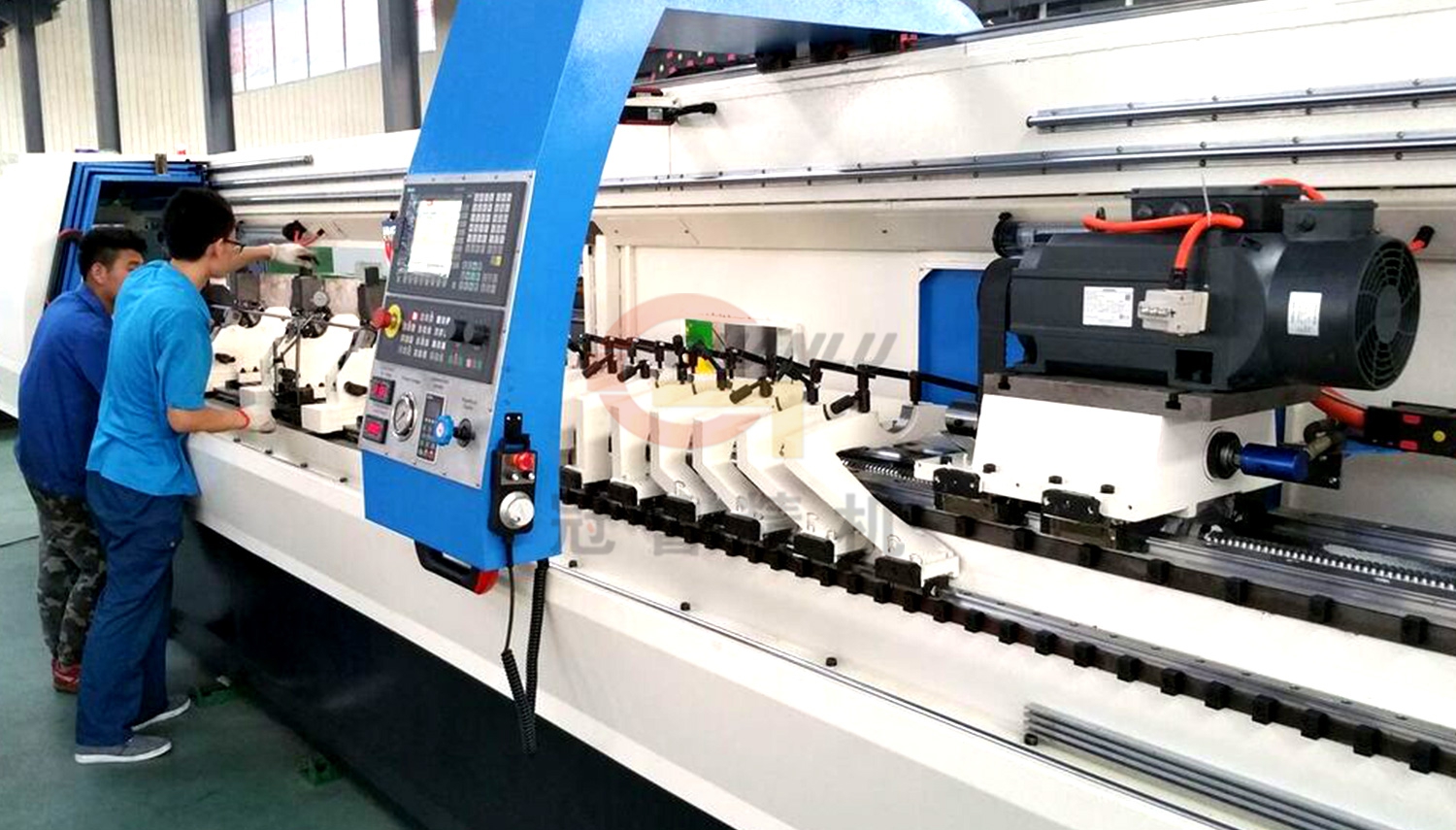

Drill box: Adopt the servo motor driving the spindle to rotate through synchronous belt and synchronous belt wheel, speed stepless , the max. rotary speed of spindle is 5000r/min , One motor drives two spindles to rotate.Spindle pre positioned is beneficial to protecting the main motor and changing knives easily.
Drill bar support: The movement between drill bar support rest and drill box can be linkage; The distance between drill bar support rests keep the same when the drill box in any position .
Guanlu brand DEEP HOLE GUNDRILLING MACHINE advantages compared with other competitors:
