This machine is specifically designed for processing ring molds, featuring vertically mounted workpieces and multi-spindle column systems for versatile and efficient machining.

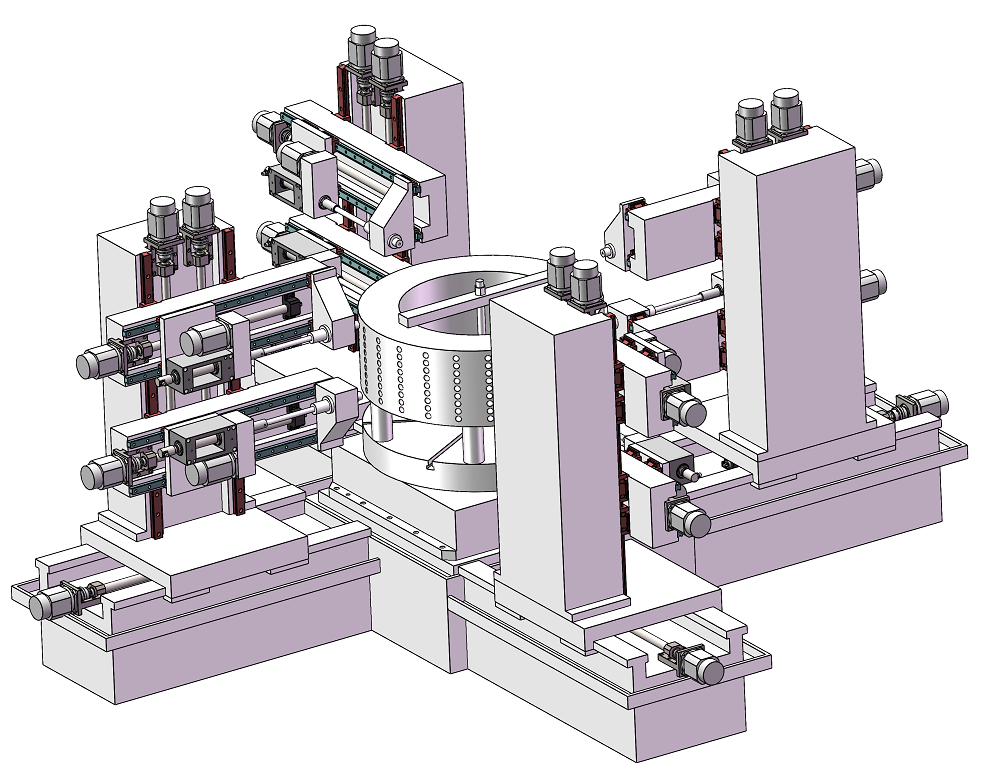

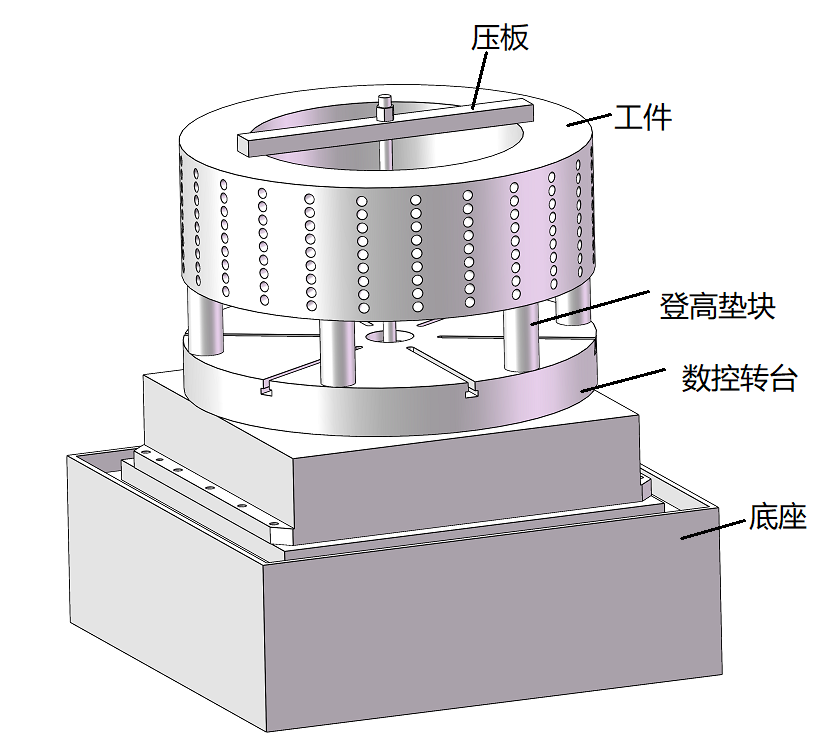

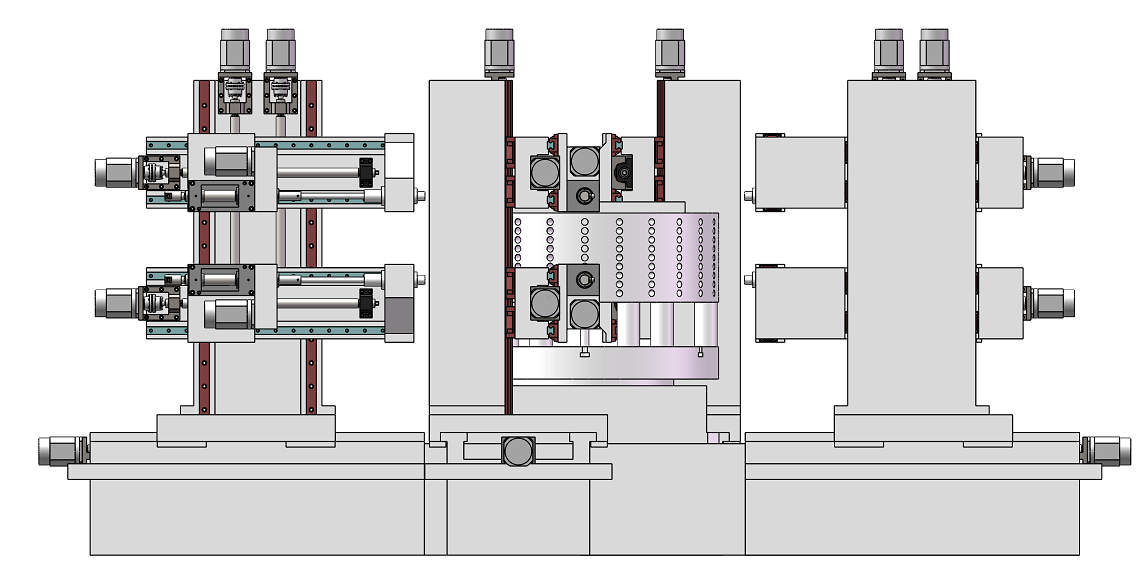

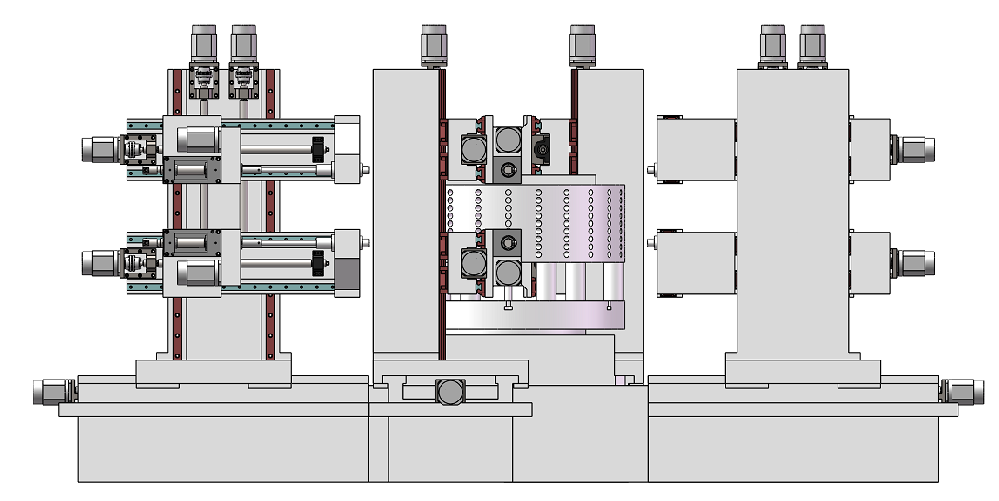

The CNC turret positions the workpiece vertically on its lifting pad, centrally surrounded by four identical column systems. Each column system includes two height-adjustable, spaced spindles on movable columns for versatile processing and efficient handling.

The column system comprises: column movement, two lifting slide tables, two drill rod boxes, and two guide frames.

Each is equipped with a cooling system consisting of an oil tank, variable frequency pump set, filter, and oil cooler.


technical specifications			parameter	remarks
working range	Drill hole diameter range		Φ5～Φ20mm
	Max drilling depth		300mm
	Range of outer diameter of workpiece		Φ300～Φ800mm
	Maximum height of workpiece		400mm
	No. of spindles		8
Machine tool performance	Tool feed	Feed speed range	5～500mm/min	stepless
		Fast moving speed	3000mm/min
		Motor torque	7.7Nm
	Y axis	Travel	500mm
		Fast move speed	3000mm/min
		Motor torque	15 Nm
	W axis	Travel	600mm
	W axis	Motor torque	16 Nm
	Drill box	range of speeds	500～5000r/min	stepless
	Drill box	power of motor	5.5KW	Servo main motor
	Worktable （B axis ）	size	Φ800mm
		indexing accuracy	30″
		Drive motor torque	15Nm
		Weight	1500kg
		maximum speed	8r/min
coolant passage	Maximum pressure		10MPa	Adjustable
	Maximum flow per tool		100L/min
	Filter accuracy		20μm
	Tank volume (approx.)		4000L
