Statement:

CNC horizontal heavy lathe is manufactured by Shandong Tongyuan Heavy Industry company,which is sister company of Dezhou Guanlu Precision Machinery company.

We manufacture the following CNC horizontal heavy duty lathes models:

CK611-T series machine tools are heavy-duty horizontal flat-bed CNC lathes, which can adopt CNC systems such as SIEMENS/FANUC/KND/GSK, and all-digital AC servo system. Turning main drive manual four-speed stepless speed change, the main motor is DC motor or AC servo motor, two linkage control. The Z-axis and X-axis of the machine tool with a center distance of 1-5M use a ball screw pair and an AC servo motor to achieve longitudinal and lateral movement, with good positioning and repeated positioning accuracy.

The main components and structures have been optimized and designed, and the stability and performance of the whole machine are excellent. Applicable to energy, chemical industry, light industry, electromechanical, papermaking, automobile industry and other industries. It has the characteristics of high precision, high power, high rigidity and high automation.

It is suitable for processing shaft, sleeve and disc parts. Such as turning inner and outer cylindrical surfaces, conical surfaces, arc surfaces, end surfaces, grooving, chamfering, threading, etc., the process has strong adaptability, high processing efficiency, simple operation, and comprehensive functions, which can reduce the need for skilled workers. requirements, it is an ideal machining equipment.

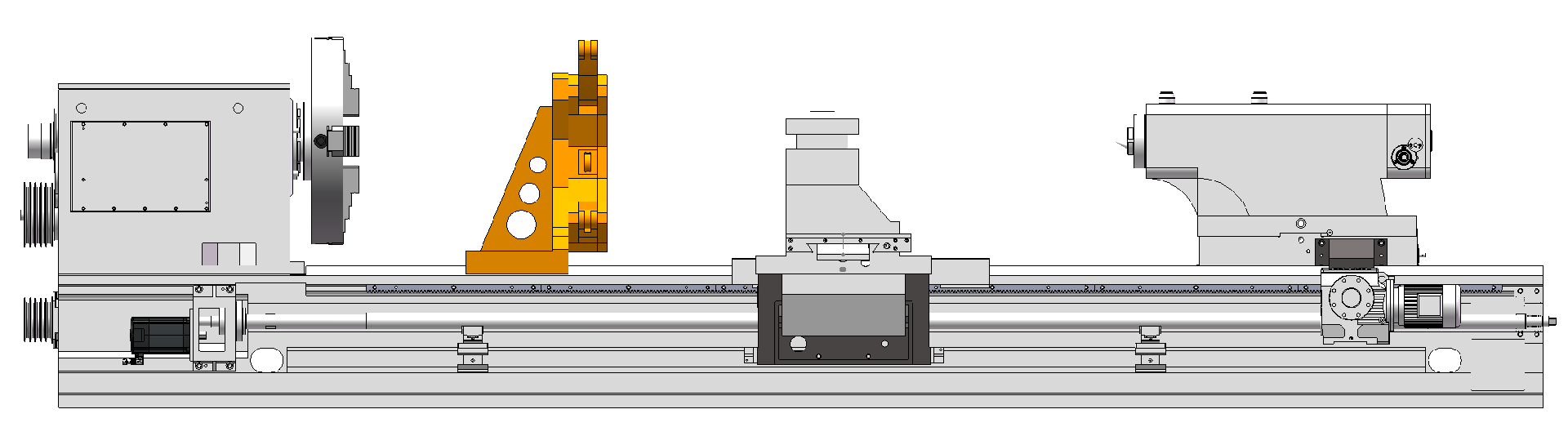

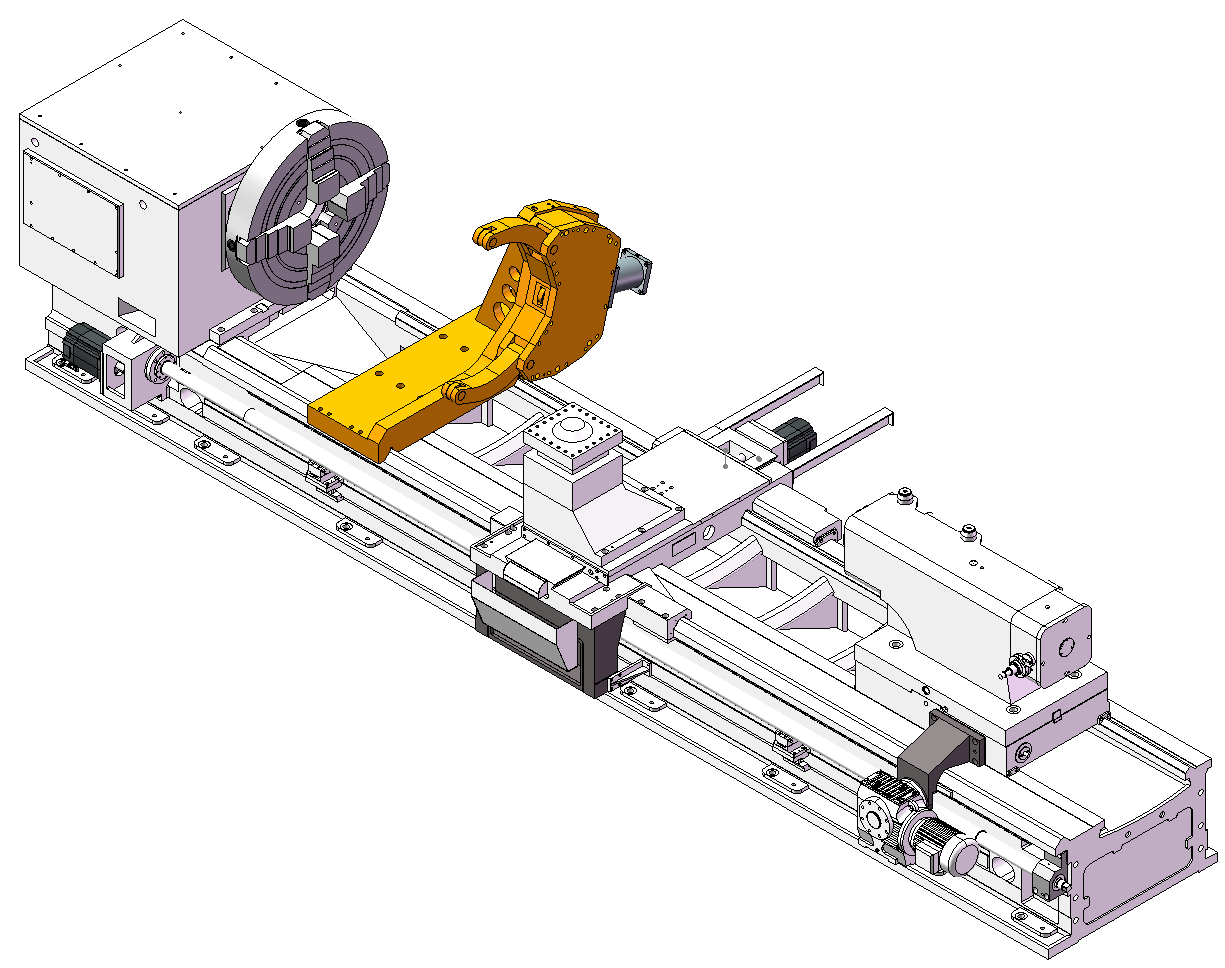

CK611F series heavy duty horizontal lathe machine fully absorbs the international advanced technology, adopts the international advanced design means and manufacturing technology, such as three-dimensional modeling, simulation design, finite element analysis, etc., and carries out modular configuration for the products. It is a meticulously designed electromechanical machine that integrates multi-disciplinary and multi category precision manufacturing technologies such as electrical, automatic control, hydraulic control and modern mechanical design.

This series of machine has excellent structural performance, has the feactures of high dynamic and static rigidity, long service life, high working efficiency, safe and reliable functions, convenient operation and beautiful appearance.

1.The spindle of headstock adopt through-type structure,which is supported by high-precision double row cylindrical roller bearing, with high precision and good stability

2. The spindle transmission is driven by AC spindle motor or DC motor,mechanical two-gears, speed stepless within gear, with wide speed range , good adaptability .

3. The machine bed adopts an integral three guide rail or integral four guide rail ,ground precisely,the surface of main guide rail is subject to medium frequency quenching treatment, hardness up to HRC50 .

4. The tailstock adopts upper and lower split structure,the mandrel inside of sleeve adopts high precision double row short cylindrical roller bearing with adjustable radial clearance ; The movement of sleeve and tailstock are motorized and equipped with a force measuring device.

5.The horizontal movements of tool turret adopts ball screw and high-precision rack and double tooth rod clearance-elimination structure is adopted for longitudinal movement, which improves the transmission accuracy of the tool turret .

6. The machine is equipped with walking platform and suspension type button station , convenient for operation .

7. The quantity of open-type and closed-type center rest can be equipped according to customer’s requirements.

8. This machine is equipped with SIEMENS 828D CNC system ,other brand CNC system is optional .

9. Double tool turret, milling and boring device,grinding device,chips conveyor, cutter cooling system etc. can be equipped according to customer’s requirements .

The CNC horizontal heavy machine could have the function of milling,grinding,drilling,boring. If need,please notice.

Machining facilities:

We have strong machining facility to produce the big lathe machines:

12meters Germany Heckert  gantry type  guide rail grinder(machining accuracy is 2-3um/1000mm),Japanese brand NSK five face milling machine,JIER 12meters gantry type planner,Coordinate boring machine,Vertical milling centere,CNC lathe,plan milling machine,quench machine,vertical milling machine,CNC lathes,Radial drilling and so on.

Technician teams:

CNC heavy duty lathes,we have four technicians to design the drawings,all of them are has more than 10years working experience.They resigned from famous chinese heavy duty lathe manufactures and joined to us.

Skilled assemble workers:

More than 10 skilled assmeble team,averagely has more than 5 years assemble experience. Machined by good machining facilites,designed by talent technicians,assembled by skilled engineers,our CNC heavy lathe machines are all in stable performance and extremly accuracy.

Certificates: we have past the ISO9001 quality management system certificate,CE quality management system certificate,Enviroments management system certificate,occupation monitoring management system certificate and so on.

Packing: All CNC lathe machines could be loaded into 40feet GP.  Packed by wooden pallets and fasten into the containers.

Machine bed width and guide quantity: Difference models has different machine bed width and swing diameter. According to the loading capacity,we will recommend different guides,we have two guide rails bed,three guide rails and four split guide rails.

Please read the following details of our models to choose your right machine or just send email to tell us your requirements:

CK61xxT series models: Machine bed width 1100mm

                                      Machine loading capacity 25tons

CK61xx Fseries models: Machine bed: Integral three guide rails or four guide rails

                                      Machine loading capacity 40tons

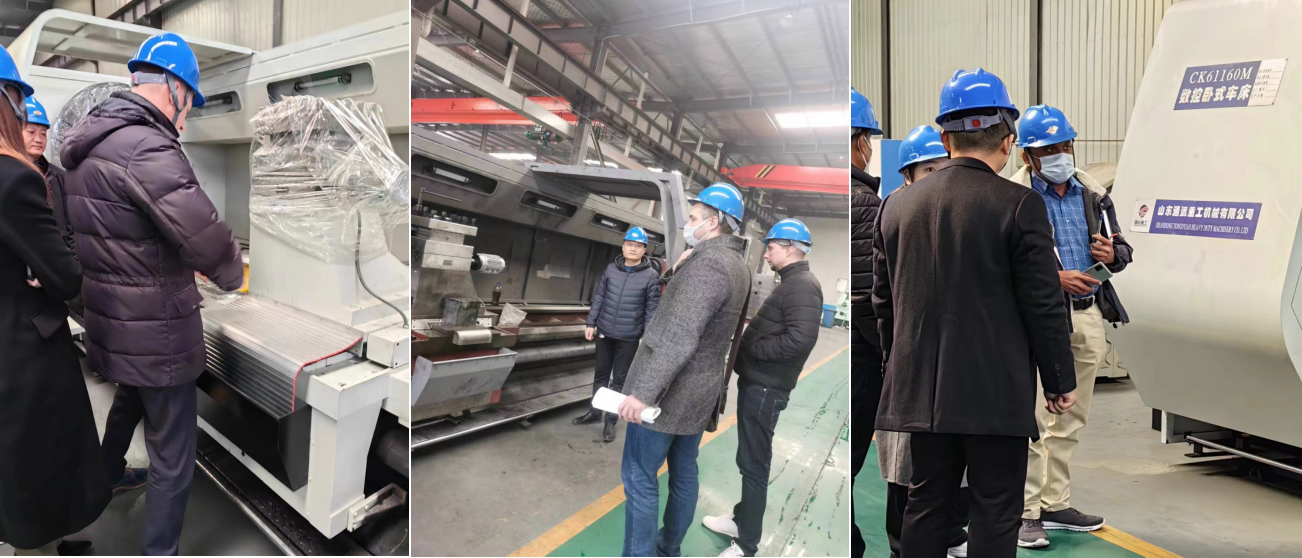

Customer come to visit us:
