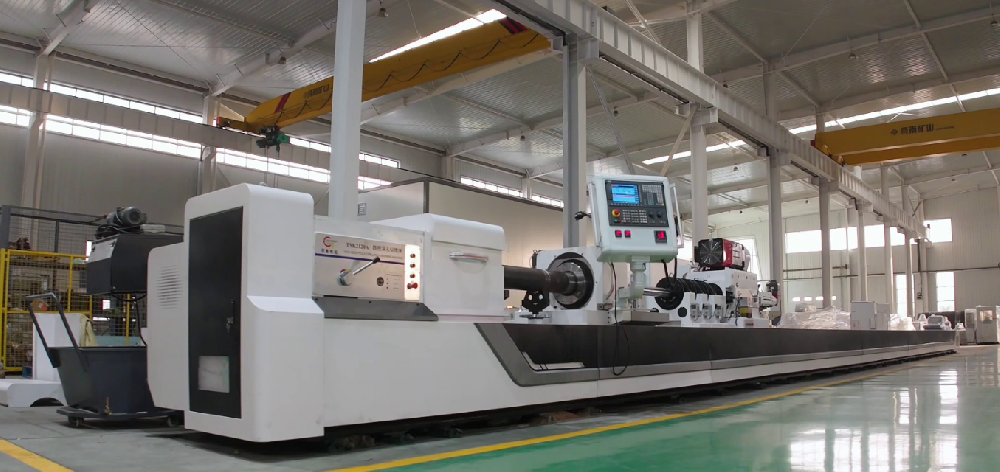

This machine is mainly used for boring deep holes of cavity, and can also be used for drilling and boring straight holes. Machine processing methods: workpiece fixation, tool rotation and feeding; The workpiece rotates, the tool does not rotate, and the tool feeds; Workpiece rotation, tool rotation, tool feed.

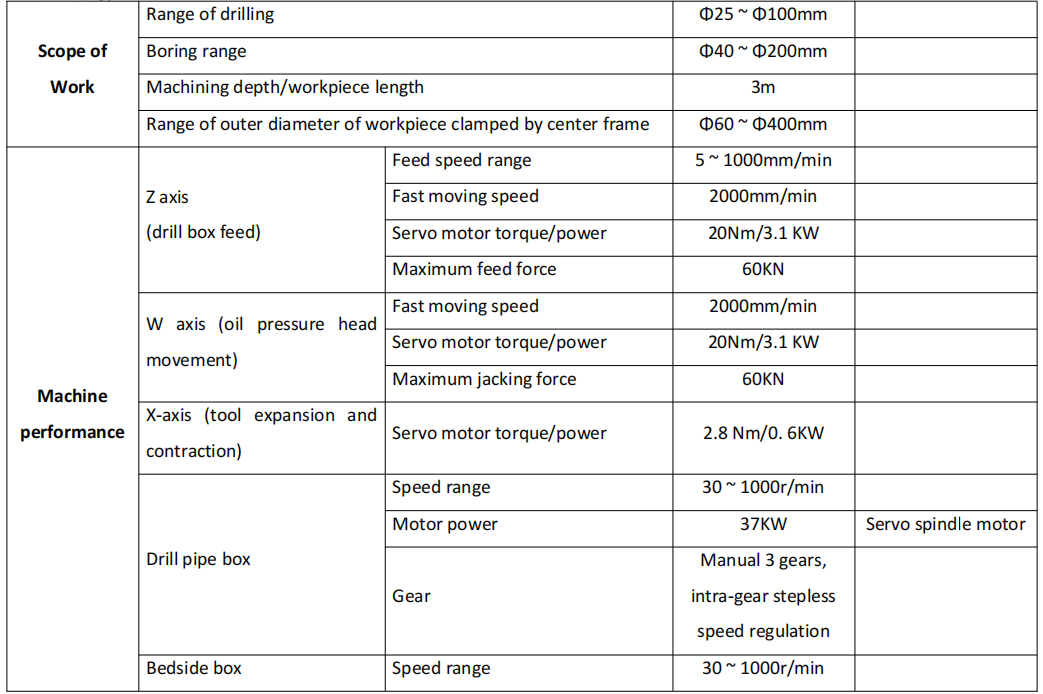

Machine tool processing scope
Drilling range: Φ25 ~ Φ100mm
Boring range: Φ40 ~ Φ200mm
Maximum workpiece length/maximum machining hole depth: 3000mm
Main structure of machine
Main components of machine
Bed body, Heafstock, oil Pressure head , Drill bar bracket, drill box, sliding guide rail, ball screw, cooling system, CNC control system, electric box, workpiece bracket, cavity hole processing device, etc.
Machine control system Control System: SIEMENS-828D
