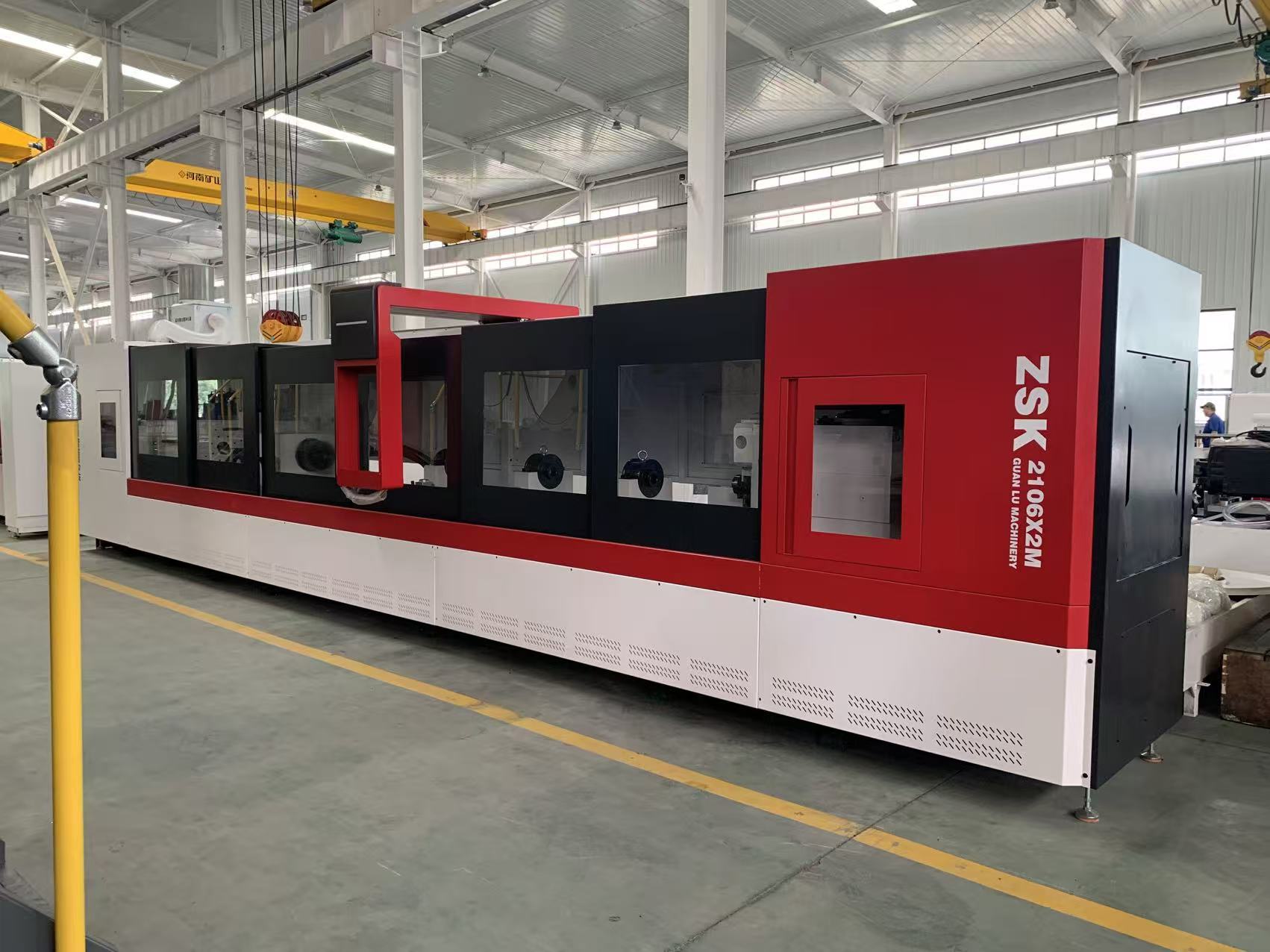

This machine is specifically designed for machining aircraft landing gear components, ensuring high structural integrity and precision through optimized casting and advanced chip removal processes.
This machine is specifically designed for machining aircraft landing gear components, ensuring high structural integrity and precision through optimized casting and advanced chip removal processes.
Specification | Parameter | Remark | ||
Working Capacity | Drill hole diameter range | Φ30～Φ60mm | / | |
Max. Drill depth | 2000mm | / | ||
Max. Workpiece length | 2000mm | / | ||
Workpiece OD range | Φ40～Φ100mm | / | ||
Machine Performance | Z axis | Feeding speed range | 5～500mm/min | Stepless |
Rapid move speed | 1500mm/min | / | ||
Feending motor torque | 15Nm | Equipped with gear-reducer | ||
Drill box | Max. Rotary speed | 800r/min | Stepless | |
Motor power | 34KW | Servo spindle motor | ||
Headstock | Max. Rotary speed | 800r/min | Stepless | |
Motor power | 34KW | Servo spindle motor | ||
Coolant System | Max. pressure | 4MPa | Adjustable | |
Flow range | 100、200、300L/min | Adjustable | ||
