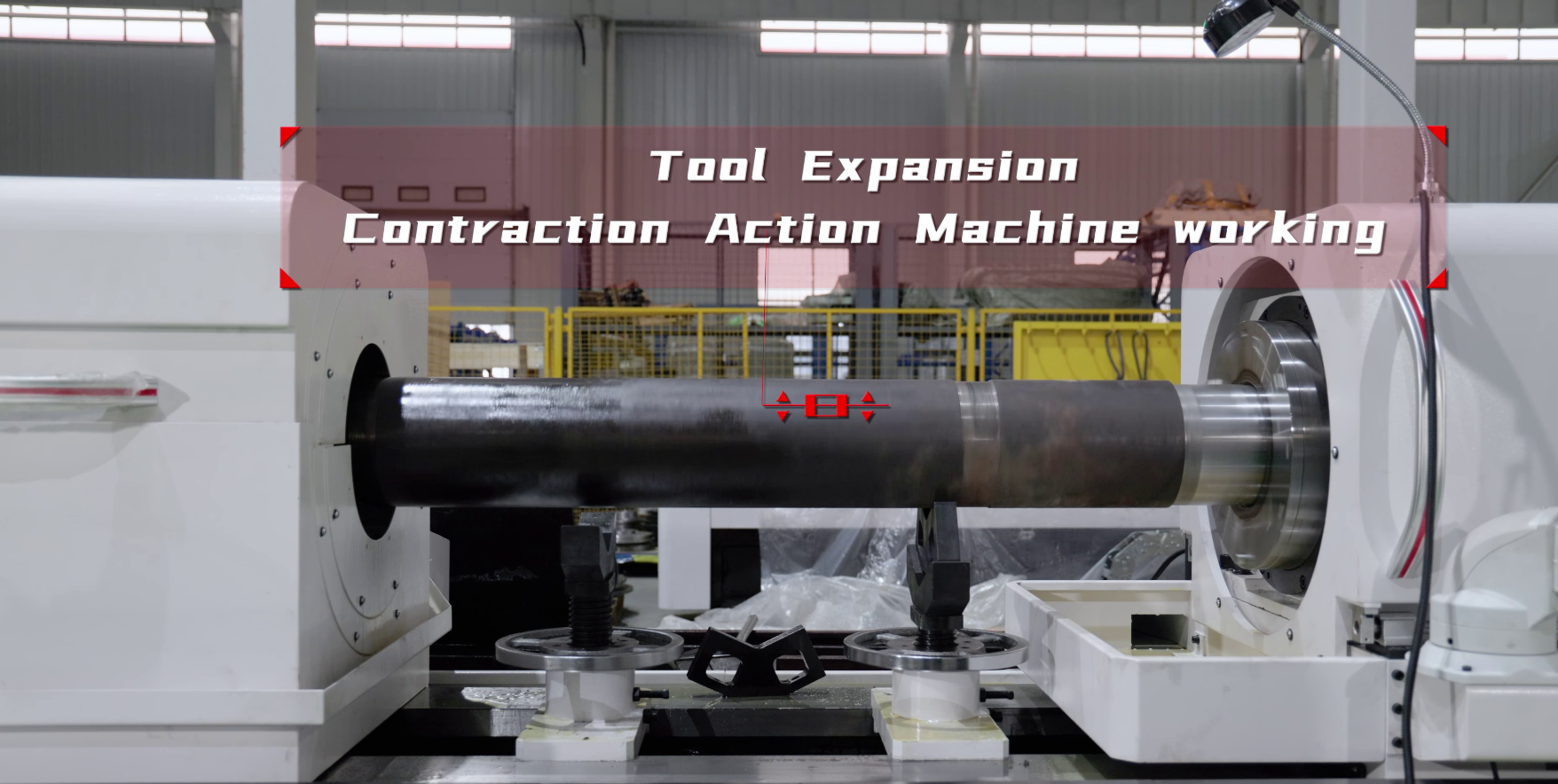

Servo tool expansion and contraction system:

As the function expansion module of the machine, the servo tool expansion and contraction system can realize two-axis linkage with the Z1 axis of the machine, and can broach grooves with controllable depth in deep holes.


Items			Parameters	Remark
Processing range	Slotted hole diameter range		Φ45~Φ250mm	Cutting tool provided by customer
	Max. Processing depth		5000mm
	Workpiece OD range		Φ60mm ~ Φ350mm
	Workpiece length range		500mm ~5000mm
Machine feature	Z1 axis (Boring Box Feed)	Feed speed range	1 ~ 12000mm/min
		Max. fast moving speed	16000mm/min
		Rated power of servo motor	108Nm/17 kW
		Rated pulling force	≥ 70 kN
	Z2 axis (HeadframeMovement)	Max. rapid moving speed	2000mm/min
	Z2 axis (HeadframeMovement)	Rated power of motor	37Nm/7.7 kW
	Z3 axis (Boring bar support rest movement)	Max. Moving speed	16000mm/min
	Z3 axis (Boring bar support rest movement)	Motor rated power	6Nm/1.5kW
	X-axis (Servo tool expansion Device)	Rapid moving speed range of cutting tool tip	0.05 ~ 5mm/min
		Specification of servo motor	2.6 Nm/0.8kW
		Rated pulling force of push rod	≥ 25kN
	Boring box	Speed range	0.1 ~ 10r/min	No gear Stepless
		Motor rated power	25Nm/5.2 kW
		Max. torque	≥1261Nm	To be confirmed
	other	Rated power of machine	About 45kW
	other	Machine load-bearing	5 tons
Cooling system		Cooling pump motor	7.5 kW	Variable frequency motor; 1 group
		Circulation pump motor	1.1 kW	1 group
		Max. pressure	30bar
		Flow adjustment range	0 ~ 100L/min
		Filtration accuracy	50 μm
	Max. volume of oil tank		About 1000L

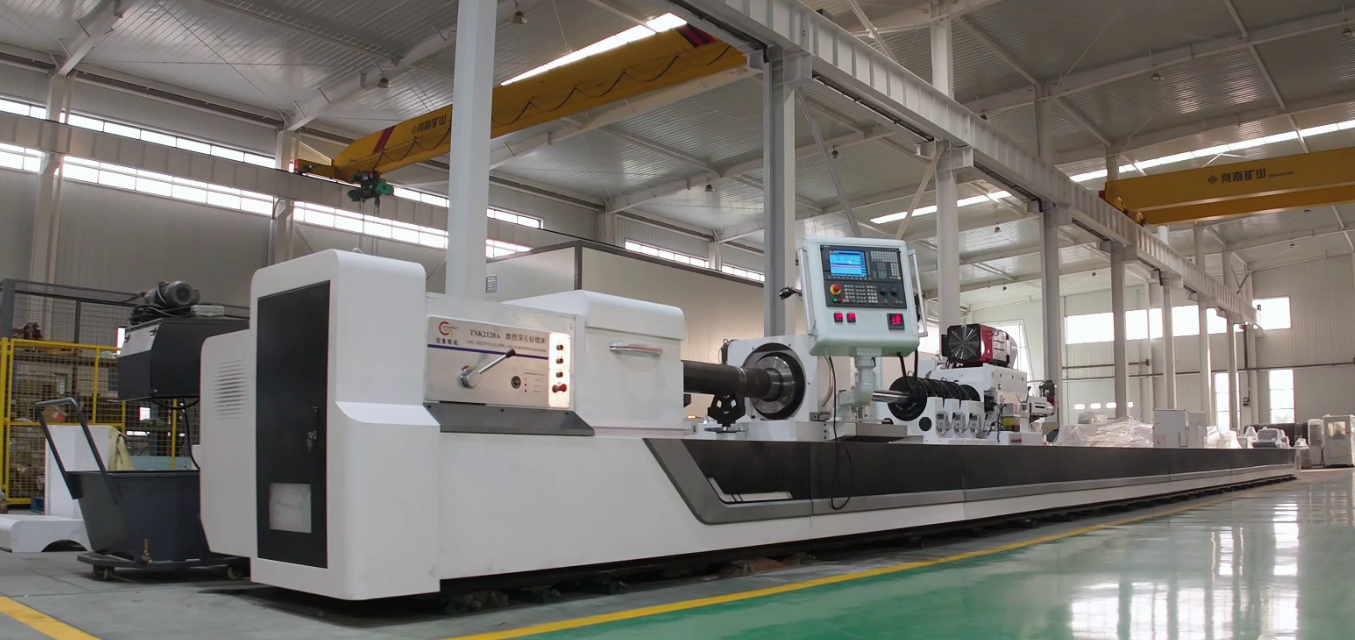

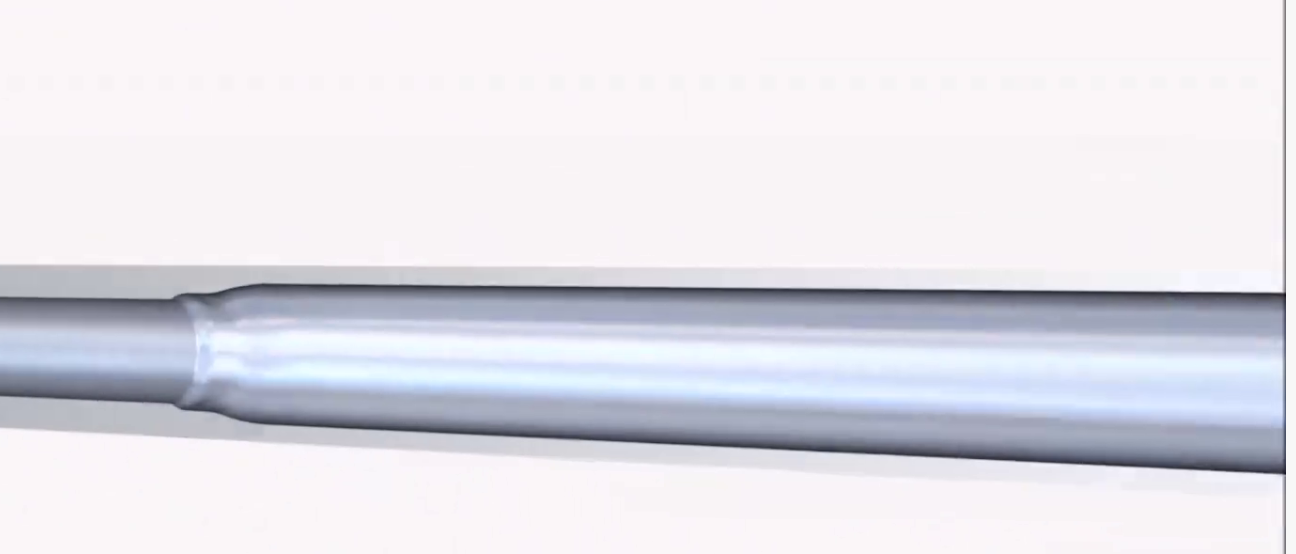

LK6107 CNC deep hole grooving machine for Cavity holes
