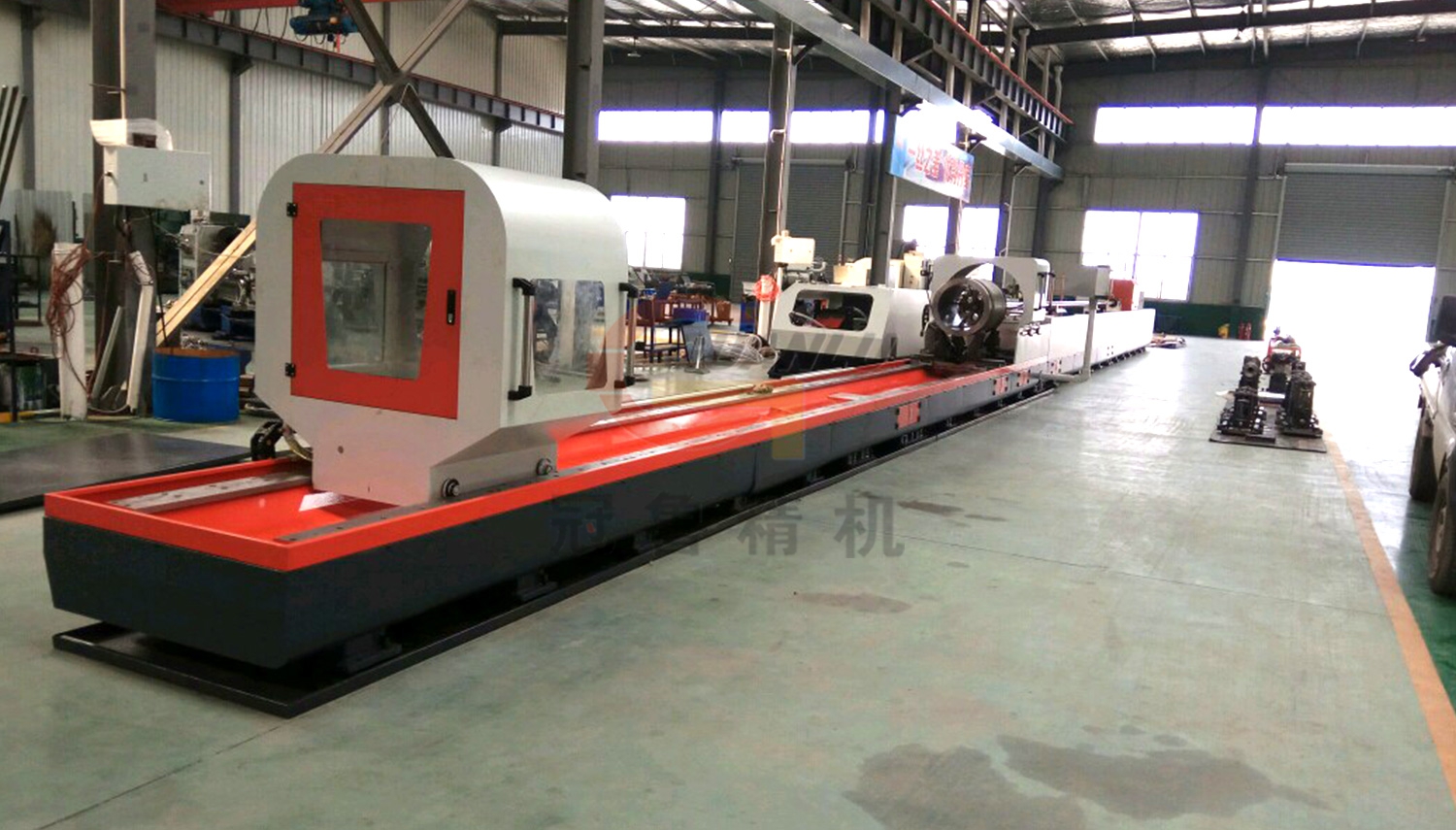

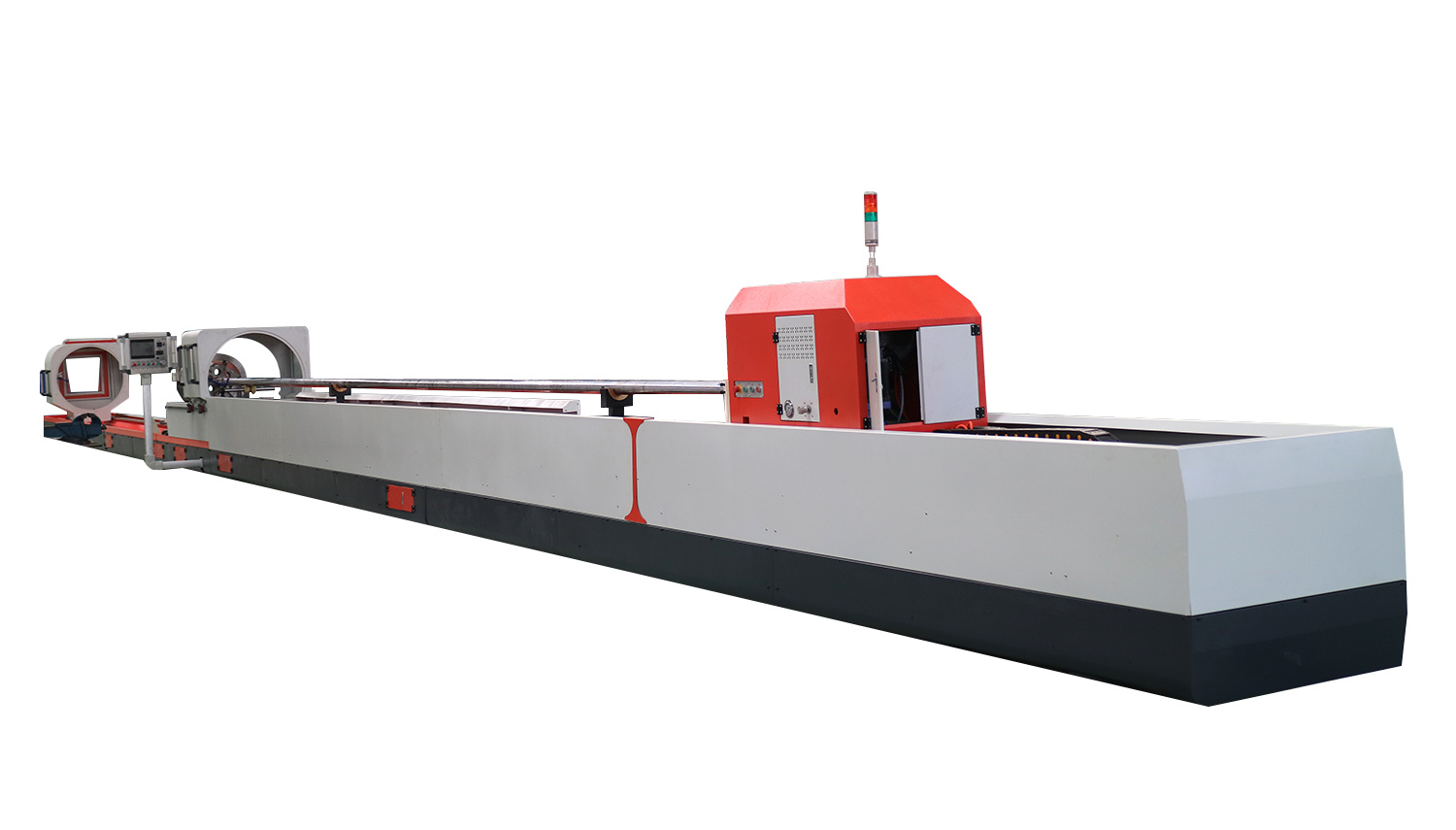

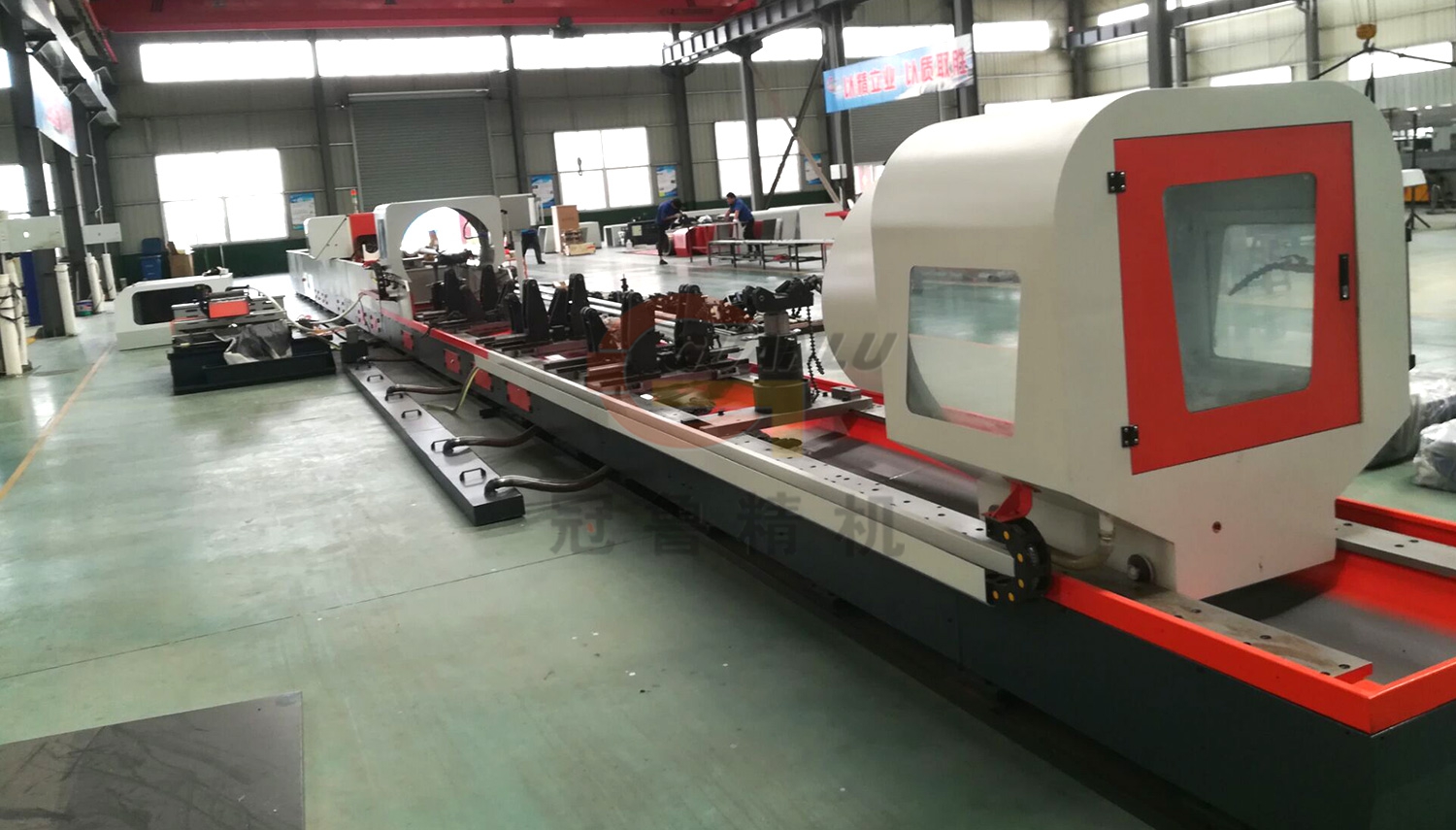

Machine brief:
■Deep hole honing machine is used for hydraulic cylinder,industry cylinder and pneumatic cylinders.

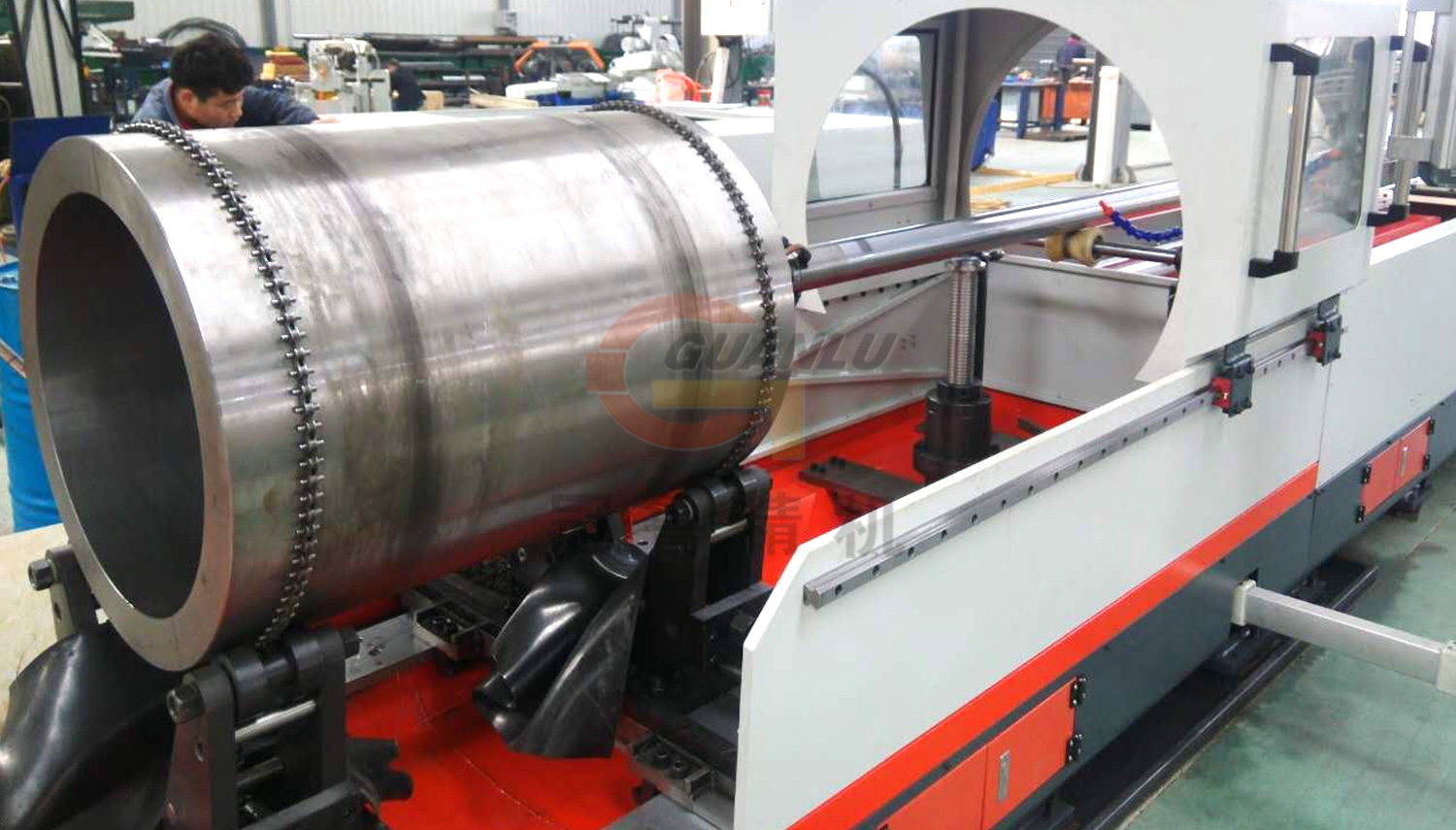

■This model machine is for huge jobs. It can hone partically as well. So it can repair the jobs as well.
■The honing head expanding and shrunk through Servo motor controlling,which could get constant feeding rate and rated honing quantity.
■The machine could be controlled by PLC or CNC. Linear rolling guide rail,AC servo motor control.
■Honing head adopts inner oil supply and outer oil supply combined mode.
■The max honing diameter of this model is 500m,we could make 800mm as well. For such jobs,the honing head weight will be very important,the lighter the better. we design the lightest honing head,which could get best roundness of the job.
Specifications | Parameter | Note | |||
Working capacity | Honing diameter range | Φ100~Φ500mm | |||
Max. Workpiece length | 1m | ||||
Max.honing depth | 1m | ||||
Workpiece OD range | Φ200~Φ650mm | ||||
Machine performance | Z1axis | Infeed speed range | 1~18m/min | Stepless | |
Servo motor torque/power | 35Nm/5.5KW | ||||
Honing box | Rotary speed range | 10~260r/min | Stepless | ||
Motor power | 15KW | Converter | |||
Cooling system | External oil feeding | Max.flow | 100L/min | ||
Motor power | 0.25KW | ||||
Filtering accuracy | 20μm | ||||
Oil tank volume | 950L | ||||
Others | Machine total power | 22KW | |||
Machine floor space | 9m×2.9m | ||||
Tooling expansion Servo motor torque/power | 2.39Nm/0.75KW | Servo motor | |||
Central Height (From machine center to machine bed) | 460mm |
