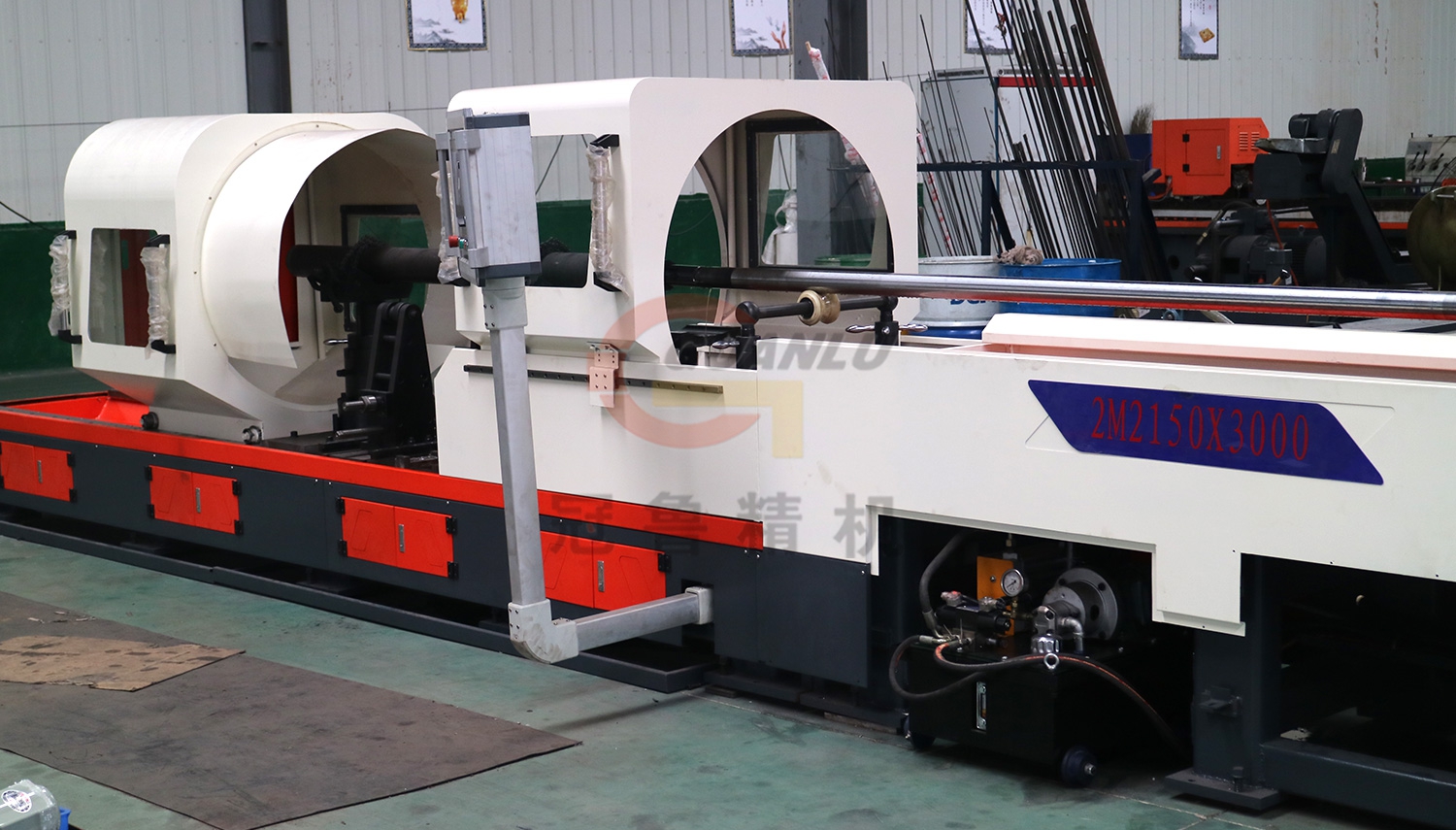

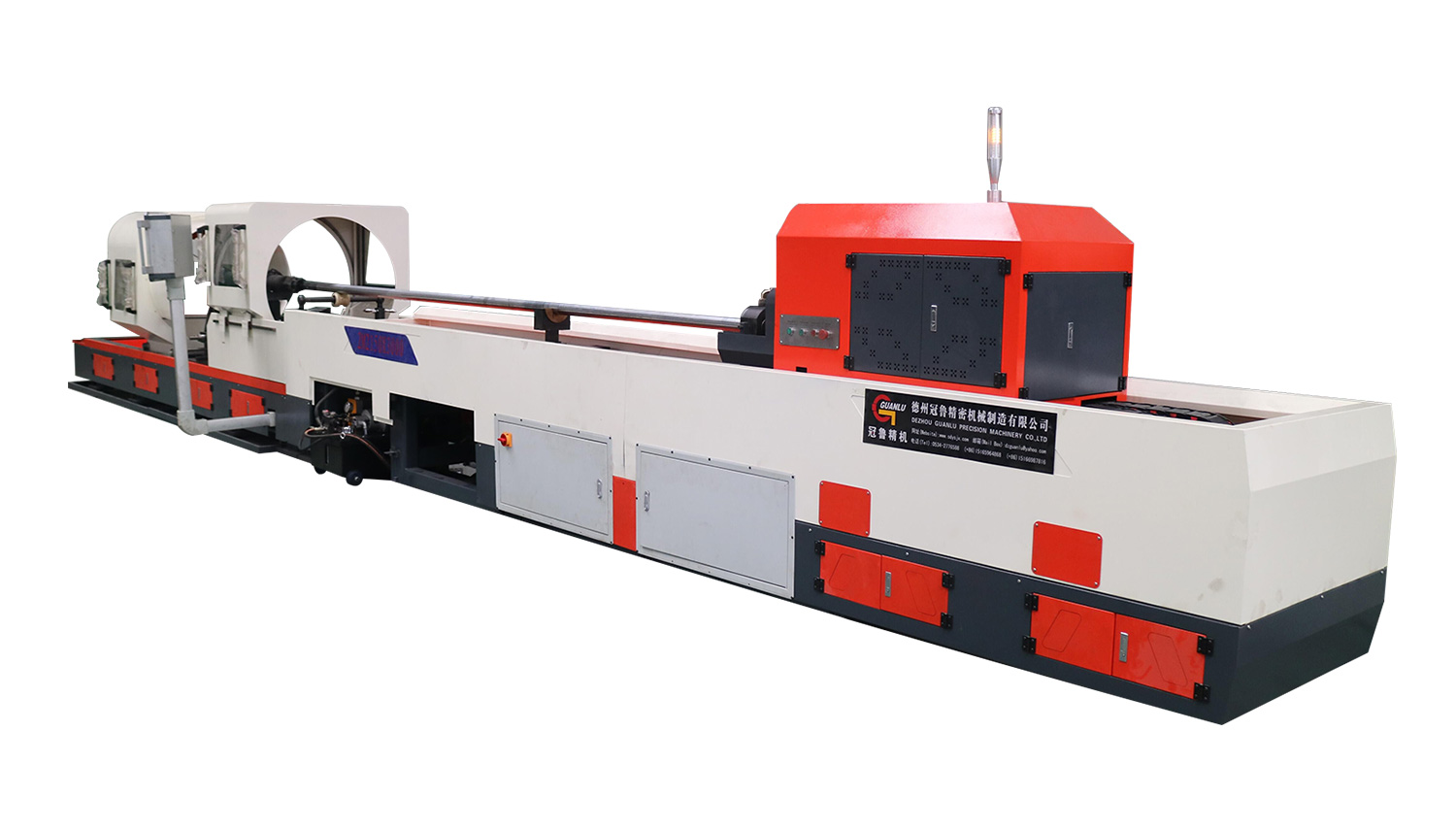

■The deep hole honing machine is used for fine machining cylindrical deep hole parts such as hydraulic cylinders and gas cylinders.

■It can be honed either as a whole or as a part. When honing locally, the errors of taper, ellipse and local aperture can be corrected.

■The expansion and tightening of honing head is controlled by servo motor, which can not only realize constant pressure feed of honing head, but also realize constant volume infeed of honing head.

■Servo control can be controlled through PLC control system panel,digital read,adjustment accuracy.

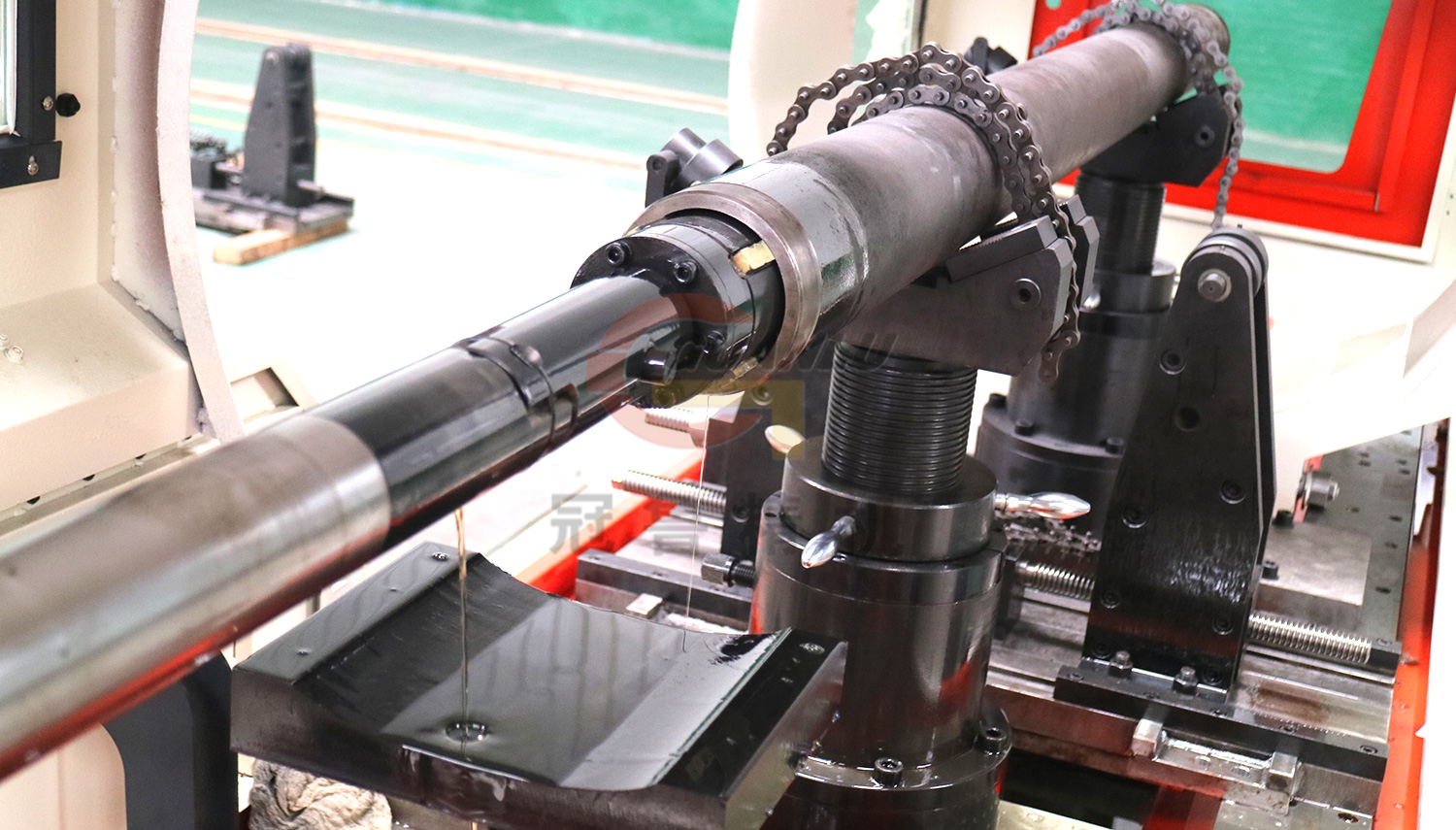

■We manufacture honing head as well,which is in light weight.

■Our deep hole honing machine is with advanced design. Low noise and high honing efficient.

■Choosing honing stone is very important. we had enough experience to choose the suitable honing stone for different honing materials.

■Cooling method：External and internal oil feeding combined mode
