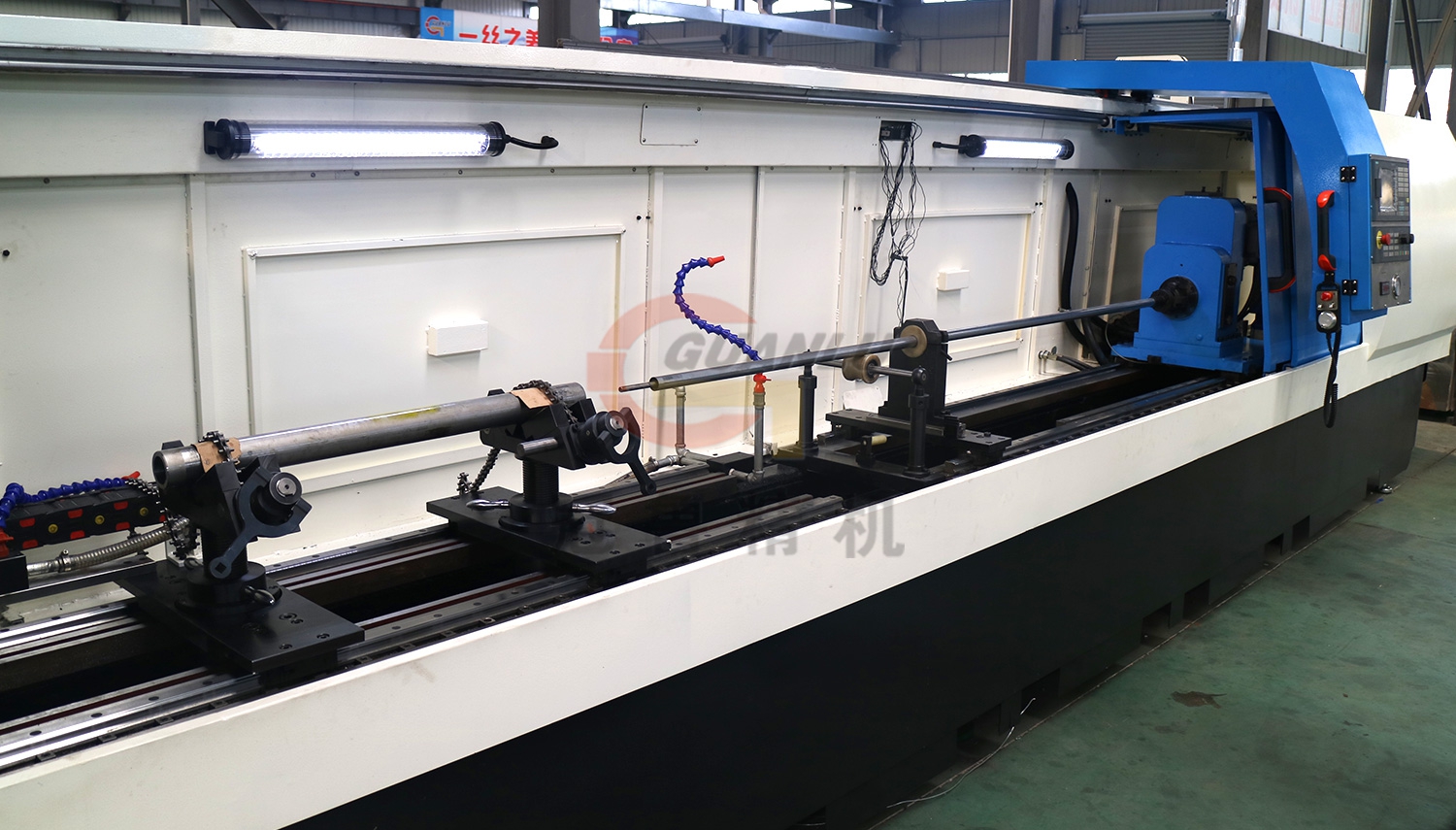

■2M2120 deep hole honing machine is suitable for cylindrical jobs honing and polish process, and also works for precision parts.
■After honed by the deep hole honing machine,the hole accuracy can be up to IT6~IT7 ,surface roughness can be up to Ra0.2-0.4μm.
■It adopts partical honing,the parts can be modified by processing the taper, ellipticity and local aperture error,.
■The honing machine is an ideal device for high precision and high efficiency .
■We adopts PLC control of Delta,running steady,easy to adjust the speed. It is easy to warranty the hole size accuracy and reduce labor intensity.
Model | 2M2120 |
Honing diemater | φ16-φ200mm |
Honing length | 500mm-15000mm |
Job clamping range | φ30-φ250mm |
Honing box main spindle speed range | 0-500r/min stepless |
Honing box main spindle repeat speed range | 0-15m/min stepless |
Honing box motor power | 5.5kw, inverter motor |
Coolant pump flow | 50L/Min |
