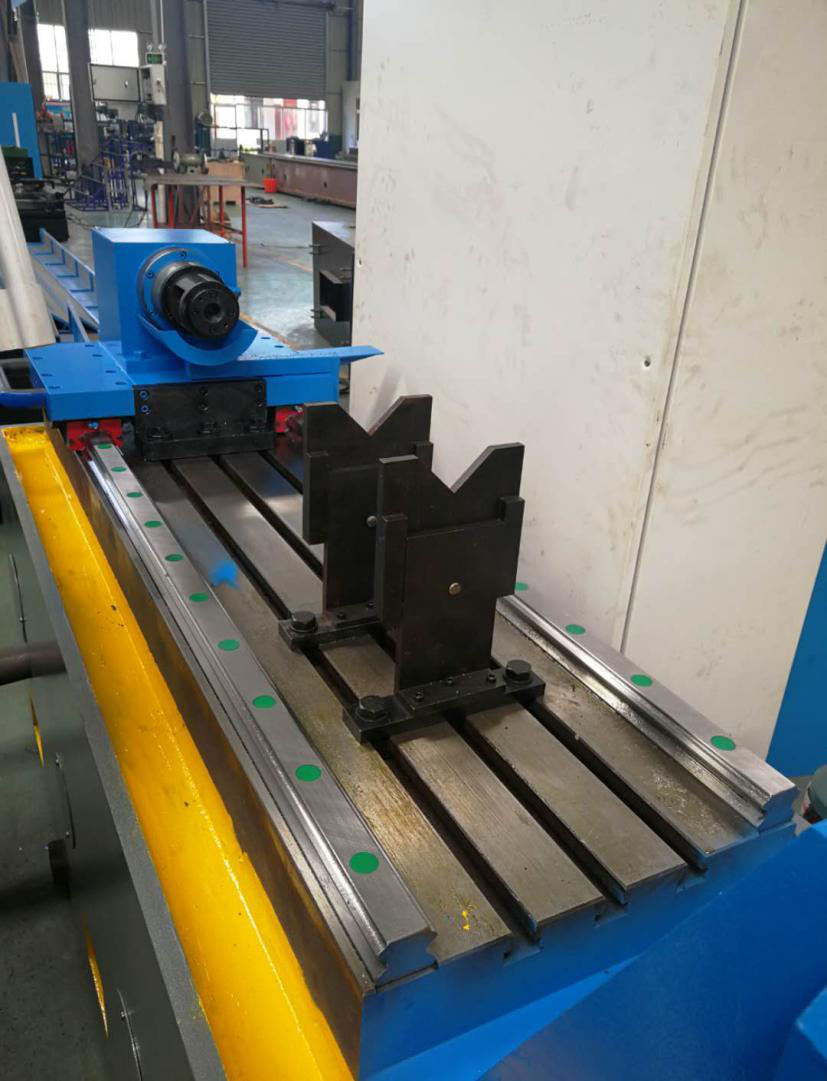

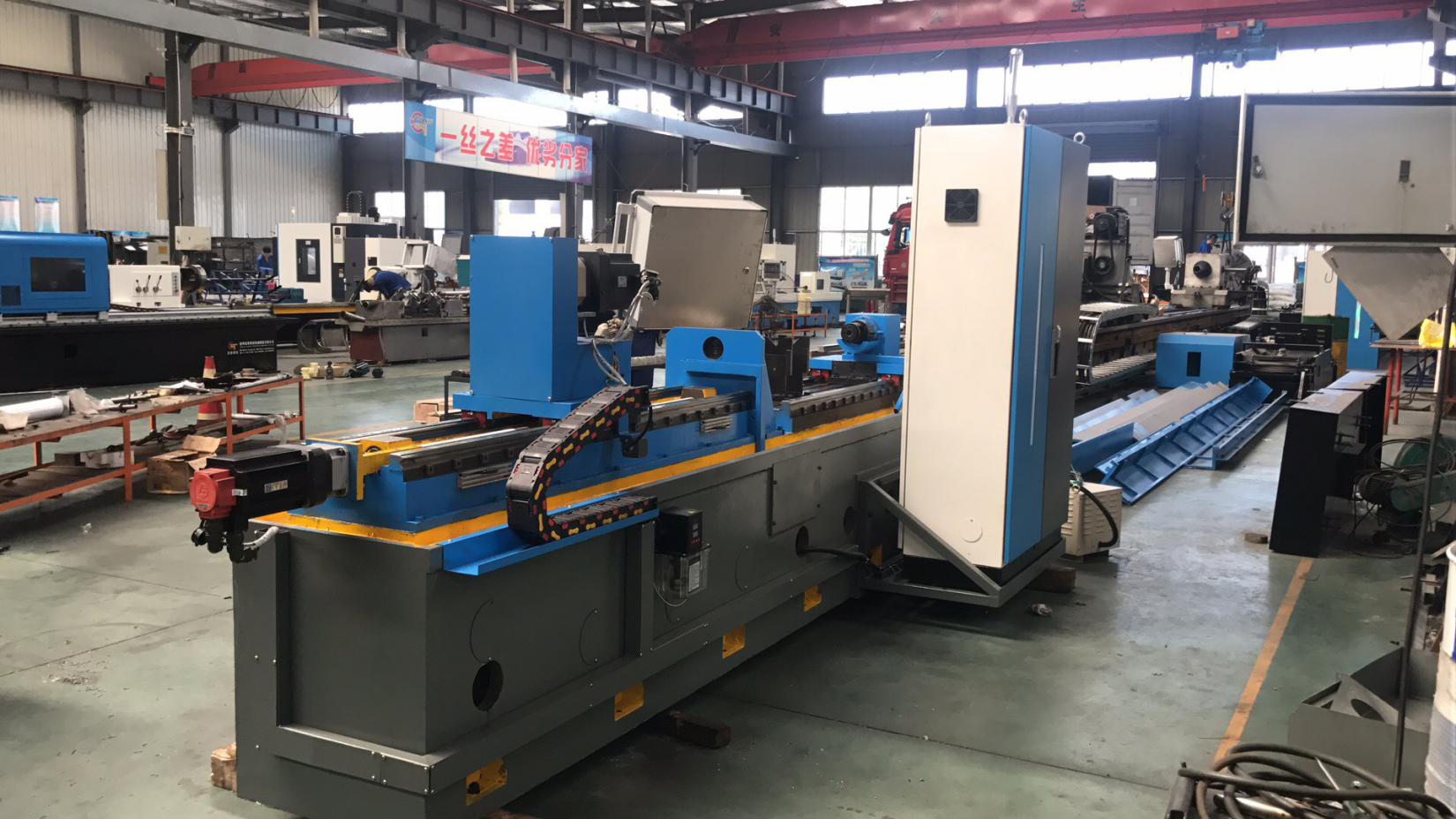

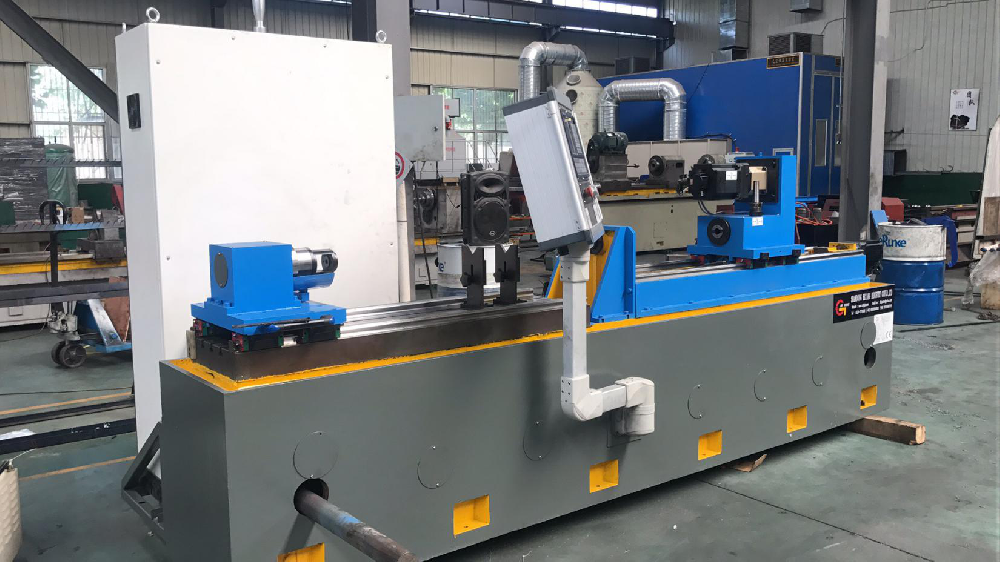

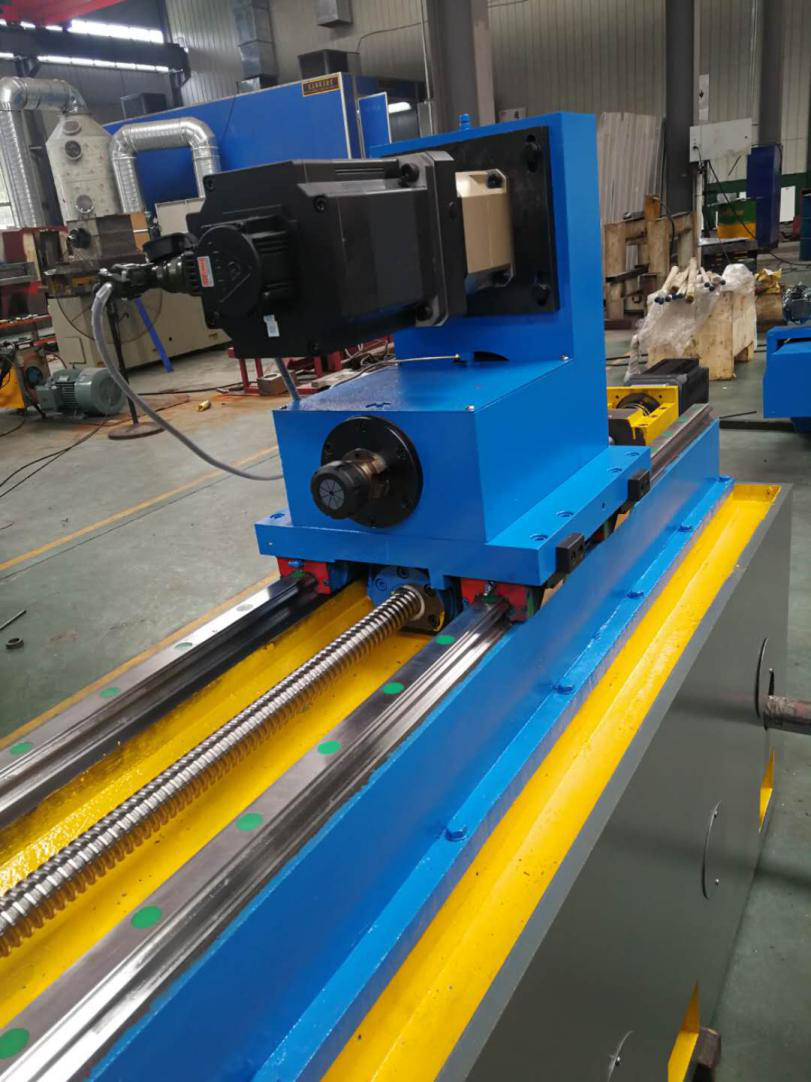

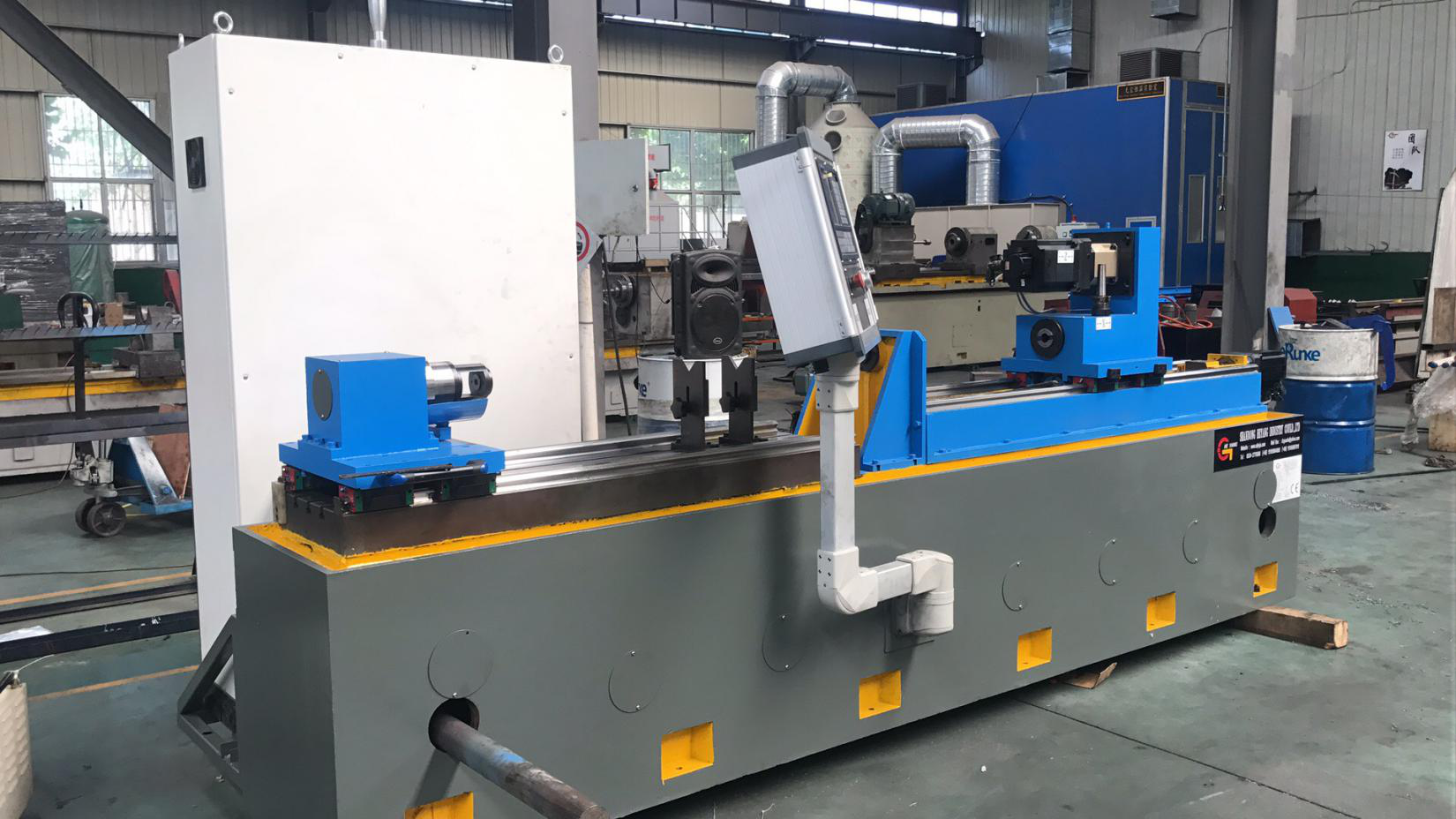

The machine is used for processing the barrel inner grooves .
Processing Overview
- Range: Max. 6-ton broaching force; workpiece length up to 2000 mm; OD range 15–75 mm.
- Spindle & Process: Single-spindle design for broaching coaxial holes in shaft parts.
- Motion: Workpiece fixed; tool rotates (X-axis) and moves linearly (Z-axis) with X/Z-axis linkage.
- Clamping: Hydraulic tailstock with cone disc locates and clamps workpiece automatically via chamfered ends.
Model | LK6106 | |
Machine capacity | Max.broaching strength | 6 ton |
Max.workpiece length | 1100mm | |
Workpiece OD range | Φ15～Φ75mm | |
Workpiece ID range | Φ5～Φ45mm | |
Spindle box | Motor power/torque | 3.5KW/2.2Nm |
Max.rotary speed | 15r/min(stepless) | |
Cutter tool infeed (Z axis) | Infeed speed range | 5~1500mm/min |
Rapid traverse rate | 3m/min | |
Motor power /toque | 3.5KW/2.2Nm | |
Others | Machine total power (roughly) | 10KW |
Floor space | 4.4m×1.9m | |
Machine totally weight() | 5.5 Ton | |
