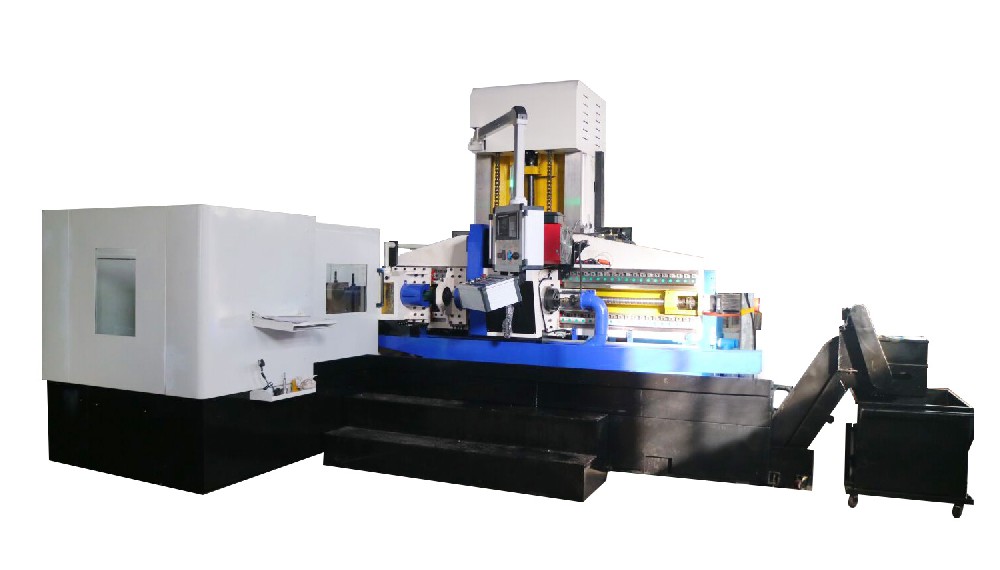

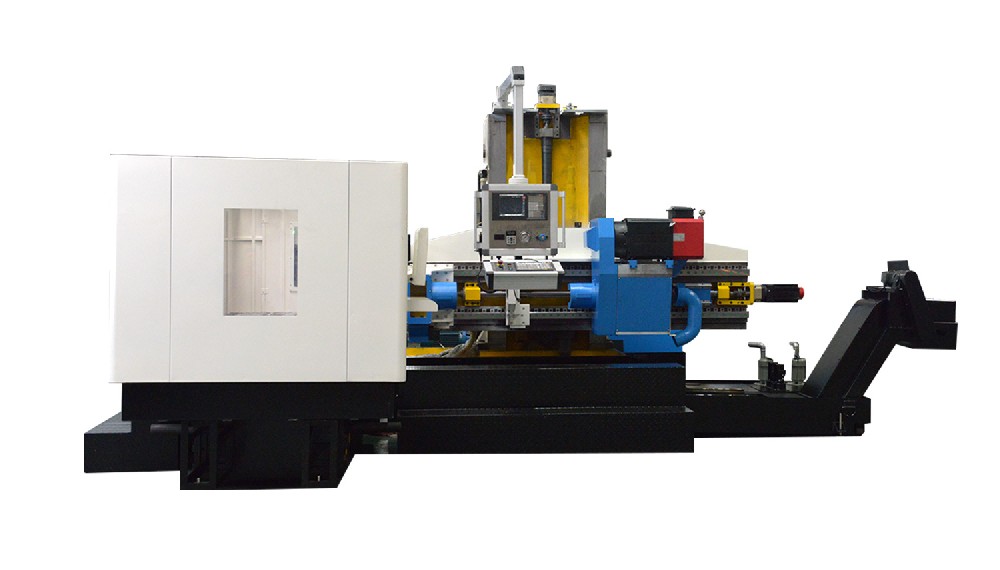

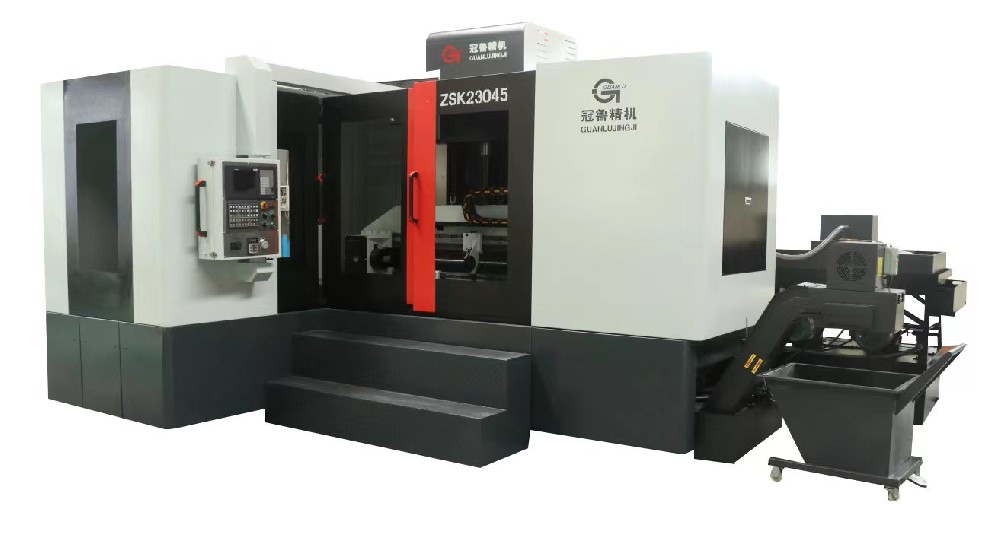

CNC 3D Deep Hole Drilling Machine

Dezhou Guanlu Precision Machinery Co.,Ltd

CNC 3D Deep Hole Drilling Machine

Three axis deep hole drilling machine application:moulds industry and pallet die industry.

CNC controller: X axis,Y axis and Z axis,the three axis are controlled by Siemens/Fanuc/GSK CNC programme.

Function: drilling(milling or tapping function is optional)

Dezhou Guanlu three axis deep hole drilling machine advantage:Our three axis deephole drilling machine has gundrilling and BTA drilling function. It has two drilling system,the drilling range is from 3mm to 80mm,with drilling depth from 300mm to 3000mm.

Standard accessories:①auto Chip conveyor and cart②Air conditioner for electrical box③Coolant pump④Steady rest for tools⑤Working light⑥Tool box⑦English operation manual

Optional accessories:①Auto chips conveyor②Drum type paper filter③Guide bush④Steady rest guide bush⑤Gundrill resharping grinding machine⑥Oil centrifugal extractor⑦Transformer⑧Coolant chiller⑨Full cover safety guard⑩.Index working table.

DZ Guanlu FACTORY advantages compared with other competitors:Our city is the production base of deep hole drilling and boring machines. Among these local competitors,our company is the first choice once clients has visited us and saw our deep hole machines. we have the absulately advantages than others.

Big workshops and Big factory: we have four workshops,one commercial office building and totally 70000square meters working area.

  • One workshop is 10000square meters.

  • Two other workshop are 13000 square meters.

  • One is 8000 square meters.

All workshops are heavy duty,crane is 32tons,height is 14meters.

Floor foundation loading is 400tons.

SO we have capacity to manufacture heavy duty deep hole drilling machines.

Strong machining facilities. Good quality and good accuracy machines are maufactured by good machining machines and skilled workers. We have two sets Germany brand Heckert guide grinder. The guide rail of the deep hole machines are the most important part,it decides the accuracy of machines. after ground by our grinder,the surface of the machine bed likes mirror. Our Japanese brand SNK five face milling machine will work on all the box parts of the BTA drilling machine. Chinee famous brand horizontal boring machine,planning machine,VMC machines,CNC lathe machines.

Most famous technicians. Our company has the most professional technicians. Six engineers totally. All of them had worked in this field for more than 15years. They are full of experience,can design the deep hole machines according to customers request.

Skilled worker teams. Nowadays,it is not easy to hire workers. Especially skilled workers. But our company has special management system to keep these skilled workers. So all of our machines are assembled by skilled workers.

Quality control system,from machine design,parts purchase,parts machining ,machine assemble,machine test running,machine packing,all the process,we have inspection system to warranty the deep hole machine quality.

We use ERP to manage the whole company running system. Every purchase parts,produced parts,machined parts are inspected seriously, all the asseble process are inspected by our inspector.

Our inspection instruments: Renishao laser inferferometer,laser linear meter,roughness meter,time aging meter and so on. ALl of our instruments are inspected every year.

We are the only deep hole machine manufactuer that can sign quality assurance contract and after sale service contract ,so all customer will rest assured after buy our machines.


In time after sale service:




Certificates of our factory:

Guanlu factory passed the ISO9000,Healthy certificate,CE and all necessary certificates.


Some exhibition we have attended and some photos of our customer visiting:

Our deep hole machines have been exported to more than 50 countries,most of customers will come to visit us before place orders or inspect machines before shipment. See photos below:


Guanlu has been attended many international exhibitions:



Deephole machine package when shipping:

Machines will be packed by plastic film,all the small parts are packed into wooden box,while fragile parts such as panels are well packed and protected.Parts inside containers will be well fasten by irons and belts.

Guanlu loading.jpg

Guanlu loading2.jpg
